Transfer Case Selector Switch Connector End View

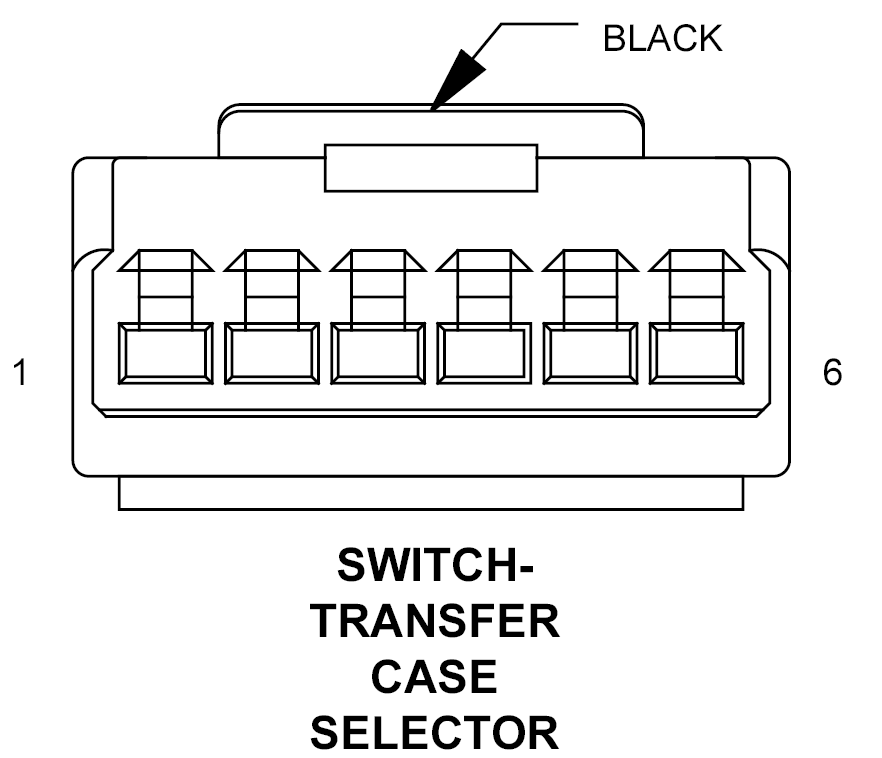

SWITCH-TRANSFER CASE SELECTOR - BLACK 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K504 20BR |
DRIVETRAIN 5 VOLT SUPPLY |
| 2 |
K977 20BR/WT |
MODE SELECT |
| 3 |
G95 20VT/BR |
4WD NEUTRAL INDICATOR |
| 4 |
F943 20PK/LG |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 5 |
E2 20OR/BR |
PANEL LAMPS DRIVER |
| 6 |
Z907 20BK |
GROUND |
