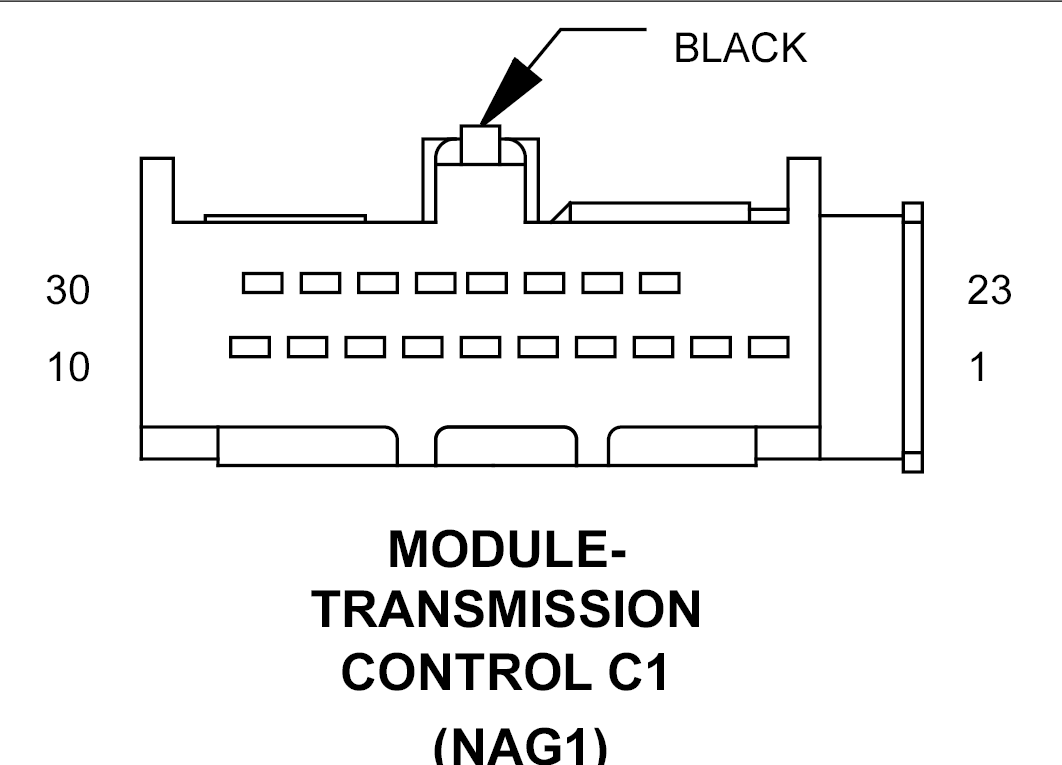

Transmission Control Module (NAG1) Connector End View (C1)
MODULE-TRANSMISSION CONTROL C1 - BLACK 18-WAY(NAG1)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
D223 20WT/VT |
SCI TRANSMIT (TCM) |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
- |
- |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
- |
- |
| 23 |
- |
- |
| 24 |
- |
- |
| 25 |
- |
- |
| 26 |
- |
- |
| 27 |
- |
- |
| 28 |
- |
- |
| 29 |
F946 20PK/LG |
TRANSMISSION RELAY OUTPUT |
| 30 |
Z904 18BK |
GROUND |
