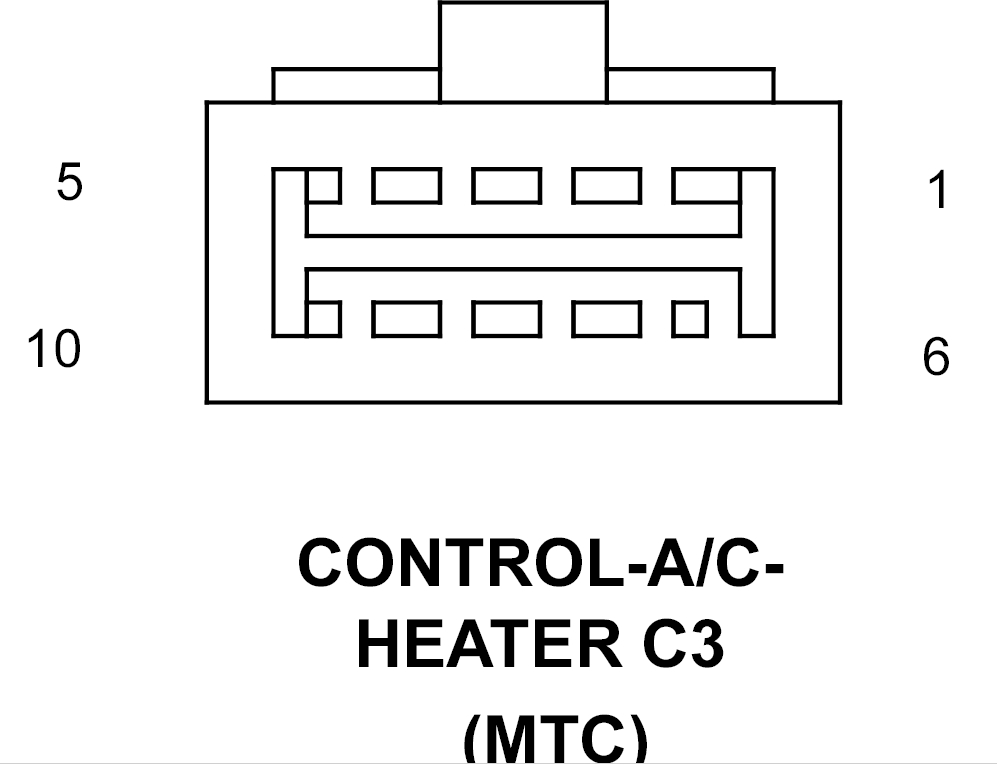

A/C Heater Control (Manual Temperature Control) Connector End View (C3)
CONTROL-A/C-HEATER C3 - 10-WAY(MTC)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C70 12LB |
BLOWER HIGH SPEED |
| 2 |
C41 18LG |
BLOWER SWITCH POSITION SIGNAL |
| 3 |
C73 12GY/LG |
BLOWER M2 SPEED |
| 4 |
Z134 12BK/LG |
GROUND |
| 5 |
- |
- |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
C72 12OR/LG |
BLOWER M1 SPEED |
| 10 |
C71 20RD/LG |
BLOWER LOW SPEED |
