Ambient Air Temperature Sensor Connector End View

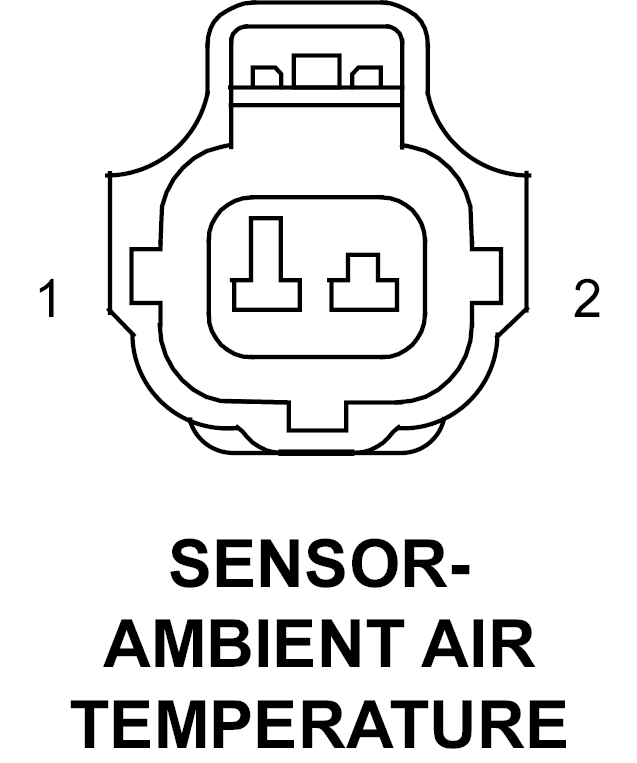

SENSOR-AMBIENT AIR TEMPERATURE - 2-WAY

GXK780309Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 G931 20VT/BR SENSOR GROUND
2 G31 20VT/OR AAT SIGNAL
