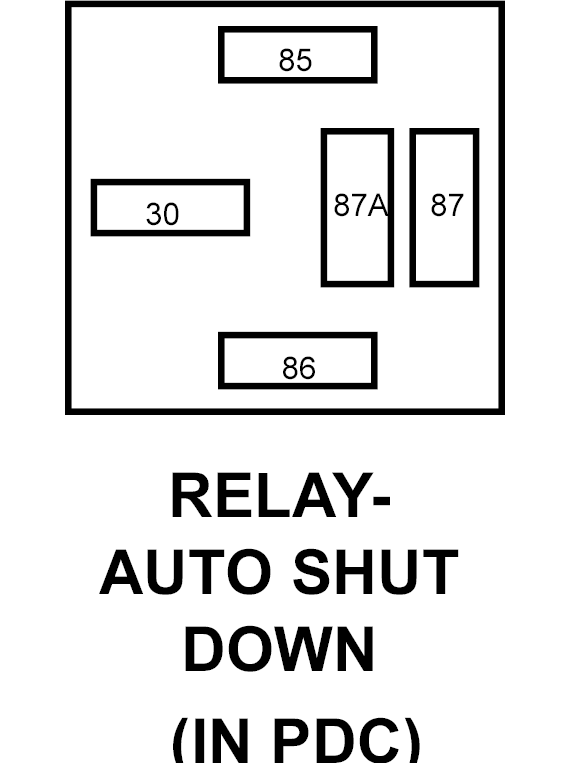

Automatic Shut Down Relay Connector End View
RELAY-AUTO SHUT DOWN - 0-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A924 10RD/VT |
FUSED B(+) |
| 85 |
K342 20BR/WT |
ASD RELAY CONTROL |
| 86 |
A924 10RD/LB |
FUSED B(+) |
| 87 |
A142 10RD/GY |
ASD RELAY OUTPUT |
| 87A |
- |
- |
