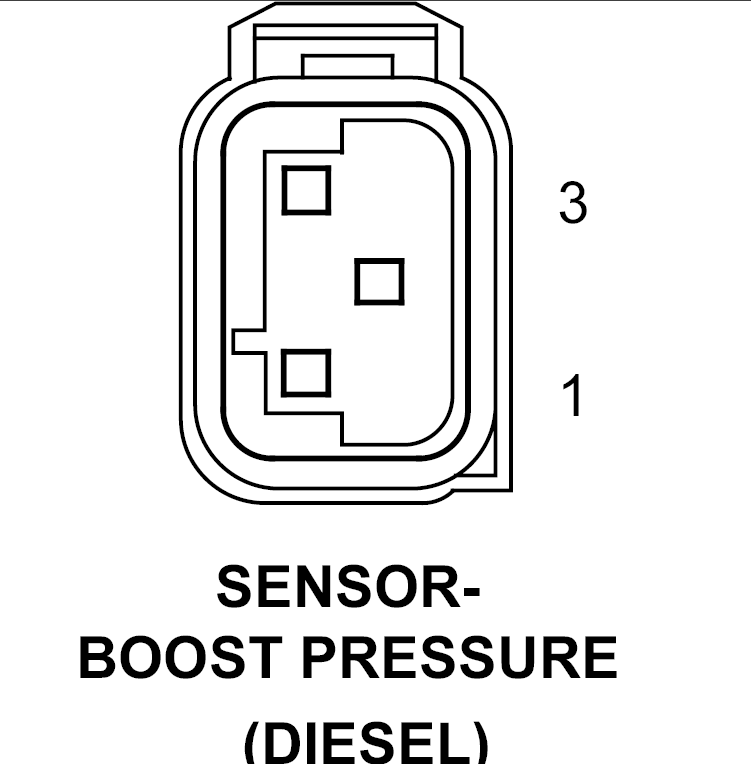

Boost Pressure Sensor (Diesel) Connector End View
SENSOR-BOOST PRESSURE - 3-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K656 20BR/GY |
BOOST PRESSURE SENSOR GROUND |
| 2 |
K37 20GY/YL |
BOOST PRESSURE SENSOR SIGNAL |
| 3 |
K356 20RD/BK |
BOOST PRESSURE SENSOR 5 VOLT SUPPLY |
