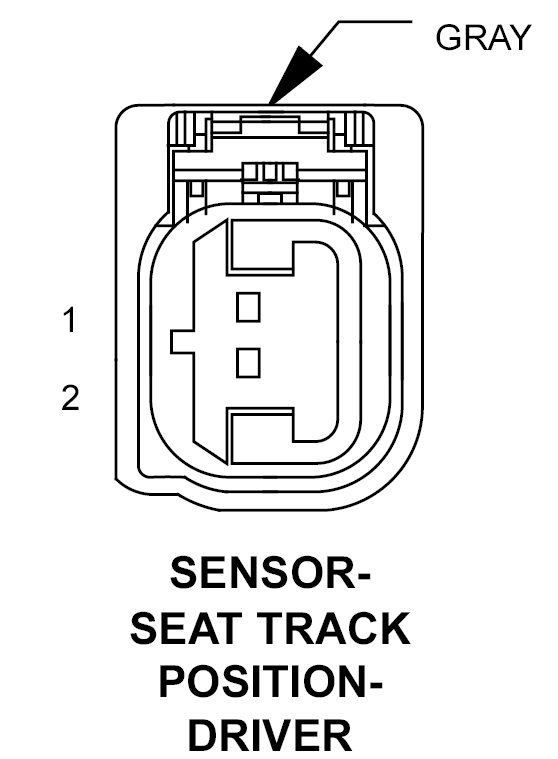

Driver Seat Track Position Sensor Connector End View

SENSOR-SEAT TRACK POSITION-DRIVER - GRAY 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	R261 20LB/BK	DRIVER SEAT POSITION SENSOR DATA
2	R263 20LB/VT	DRIVER SEAT POSITION SENSOR VOLTAGE
