Front Blower Component Side Motor Connector End View

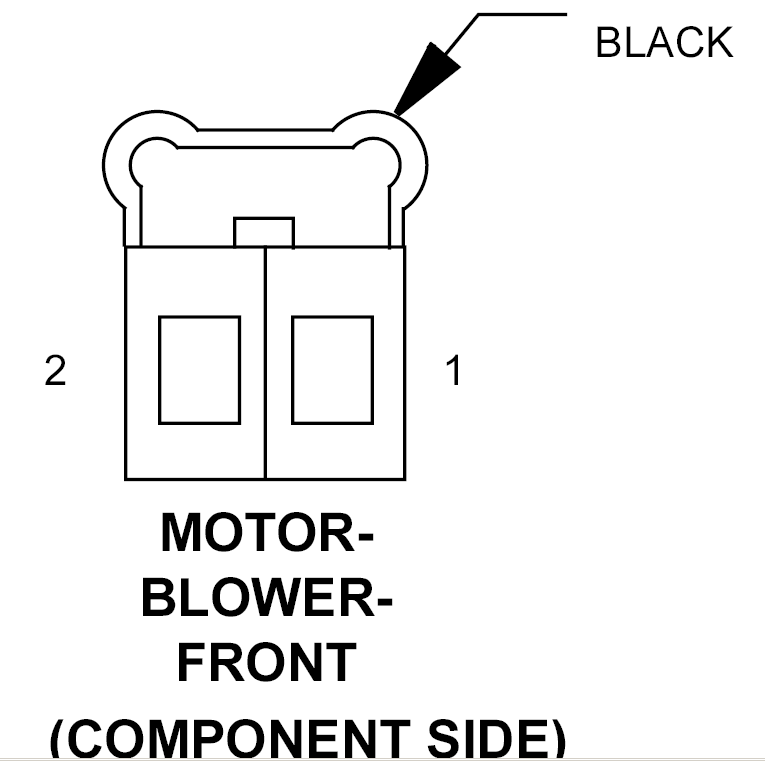

MOTOR-BLOWER-FRONT - BLACK 2-WAY(COMPONENT SIDE)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C7 12DG |
FRONT BLOWER MOTOR RELAY OUTPUT (ATC) |
| 1 |
C7 12DG |
FRONT BLOWER MOTOR RELAY OUTPUT (MTC) |
| 2 |
C75 12BK |
BLOWER MOTOR GROUND (ATC) |
| 2 |
C75 12BK |
BLOWER HIGH SPEED (MTC) |
