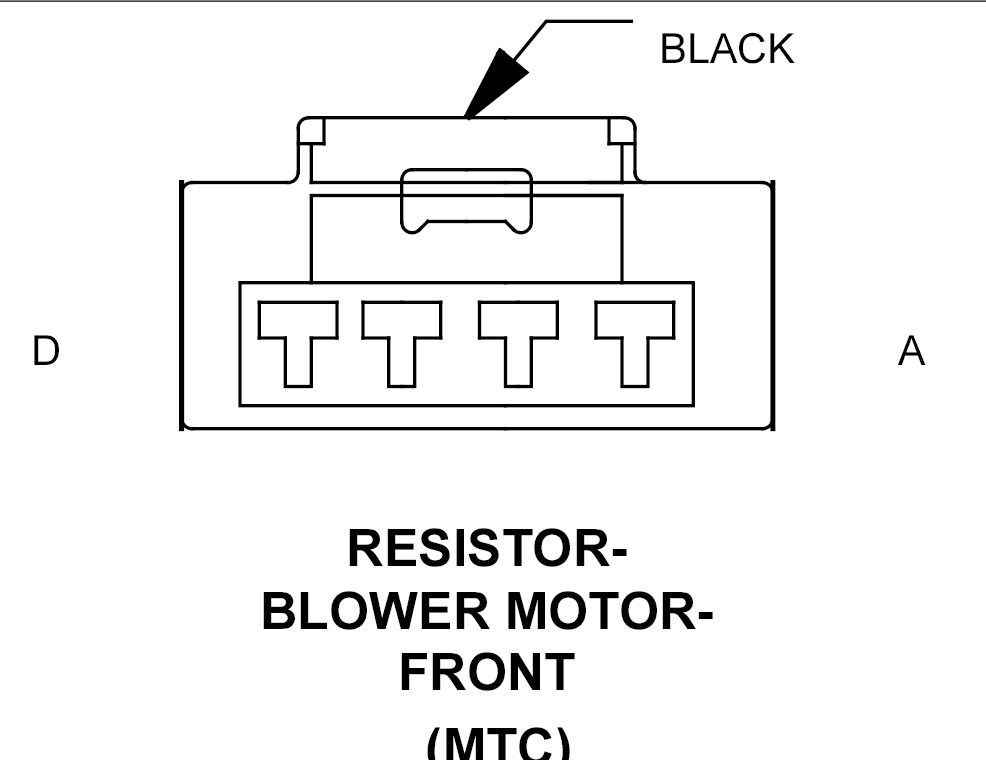

Front Blower Motor Resistor (Manual Temperature Control) Connector End View
RESISTOR-BLOWER MOTOR-FRONT - BLACK 4-WAY(MTC)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
C73 12GY/LG |
BLOWER M2 SPEED |
| B |
C72 12OR/LG |
BLOWER M1 SPEED |
| C |
C71 20RD/LG |
BLOWER LOW SPEED |
| D |
C74 12LB |
BLOWER HIGH SPEED |
