Fuel Temperature Sensor (Diesel) Connector End View

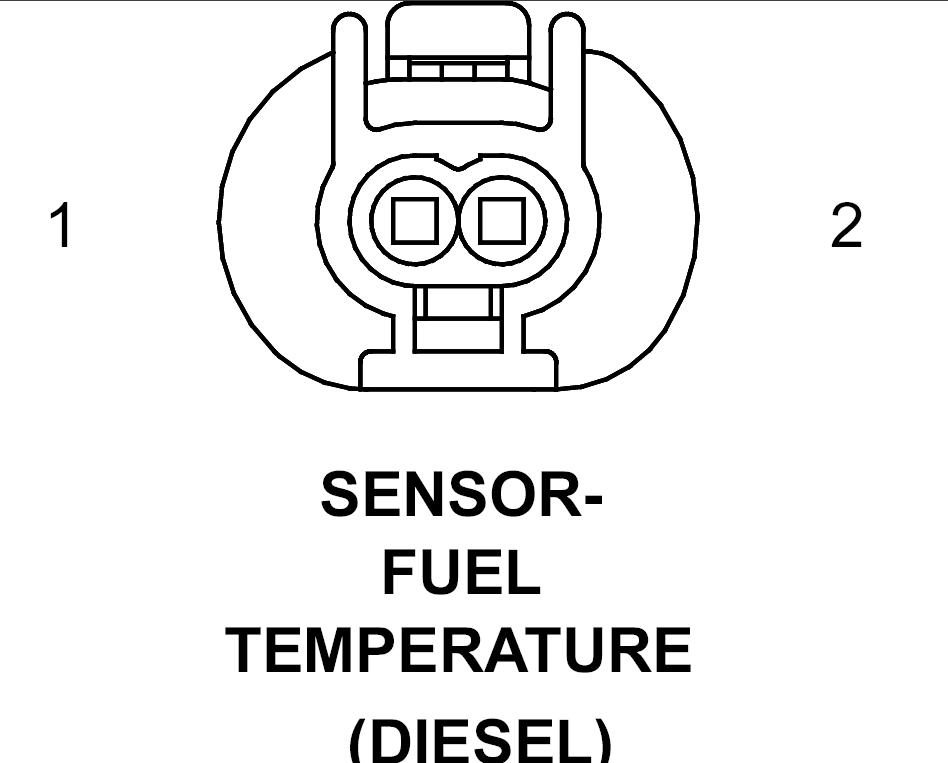

SENSOR-FUEL TEMPERATURE - 2-WAY(DIESEL)

GXK780329Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K914 20BL/DG FUEL TEMPERATURE SENSOR GROUND
2 K156 20BL/RD FUEL TEMPERATURE SENSOR SIGNAL
