Ignition Coil 2 Connector End View

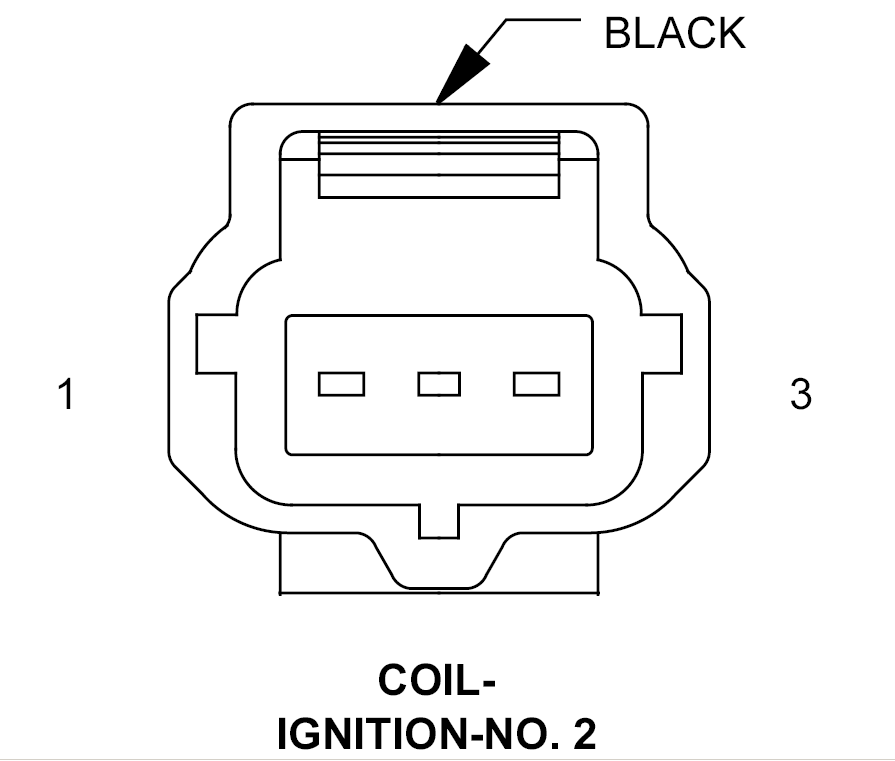

COIL-IGNITION-NO. 2 - BLACK 3-WAY

GXK780114Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K85 16DB/YL COIL CONTROL NO. 2
2 A15 16RD/TN FUSED ASD RELAY OUTPUT
3 - -
