Knock Sensor 2 (3.7L/5.7L) Connector End View

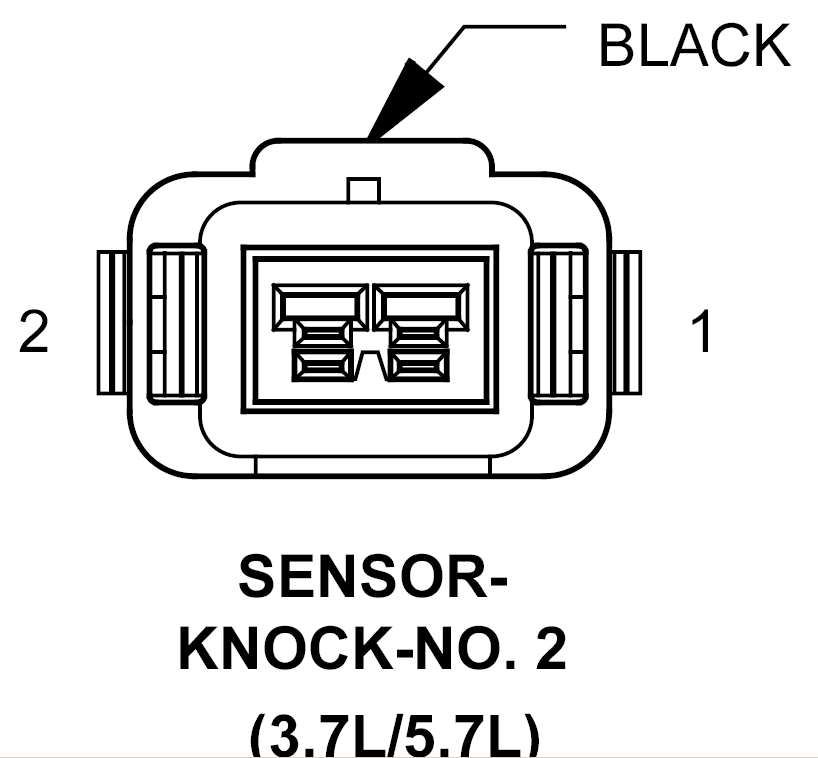

SENSOR-KNOCK-NO. 2 - BLACK 2-WAY(3.7L/5.7L)

GXK780336Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K242 20OR/WT KNOCK SENSOR NO. 2 SIGNAL
2 K924 20WT/BR KNOCK SENSOR NO. 2 RETURN
