Line Pressure Sensor (45RFE) Connector End View

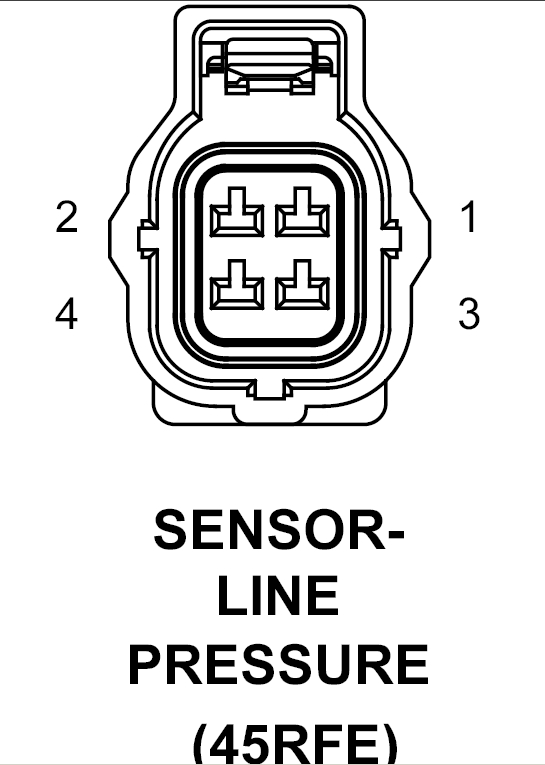

SENSOR-LINE PRESSURE - 4-WAY(45RFE)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K900 20DB/DG
SENSOR GROUND
2
F856 20YL/PK
5 VOLT SUPPLY
3
T38 20YL/BR
LINE PRESSURE SENSOR SIGNAL
4
-
-
Courtesy of CHRYSLER CORP.
