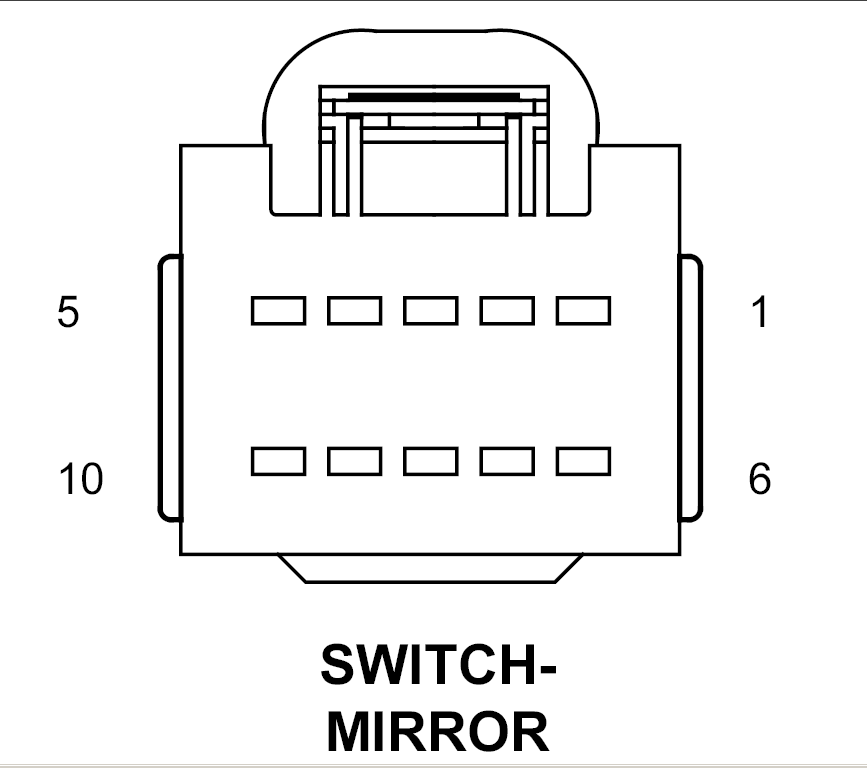

Mirror Switch Connector End View
SWITCH-MIRROR - 10-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P110 20LB/WT | FOLDING MIRROR RETURN (EXPORT) |
| 2 | A929 16RD/DB | FUSED RUN/ACCESSORY DELAY RELAY OUTPUT |
| 3 | P76 20TN/LB | MIRROR COMMON DRIVER |
| 4 | Z911 20BK | GROUND |
| 5 | A931 20RD | FUSED B(+) (EXCEPT MEMORY) |
| 5 | A931 20RD/WT | FUSED B(+) (MEMORY) |
| 6 | P72 20TN/DG | PASSENGER MIRROR VERTICAL DRIVER (EXCEPT MEMORY) |
| 6 | P706 20LG/GY | MIRROR VERTICAL UP SWITCH SENSE (MEMORY) |
| 7 | P71 20TN/DG | DRIVER MIRROR VERTICAL DRIVER (EXCEPT MEMORY) |
| 7 | P705 20LG/OR | MIRROR VERTICAL DOWN SWITCH SENSE (MEMORY) |
| 8 | P74 20TN/LG | PASSENGER MIRROR HORIZONTAL DRIVER (EXCEPT MEMORY) |
| 8 | P704 20LG/TN | MIRROR HORIZONTAL RIGHT SWITCH SENSE (MEMORY) |
| 9 | P75 20TN/LG | DRIVER MIRROR HORIZONTAL DRIVER (EXCEPT MEMORY) |
| 9 | P703 20DB/LG | MIRROR HORIZONTAL LEFT SWITCH SENSE (MEMORY) |
| 10 | P699 20LG/YL | FOLDING MIRROR CONTROL (EXPORT) |
