Output Speed Sensor (RFE) Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Output Speed Sensor (RFE) Connector End View

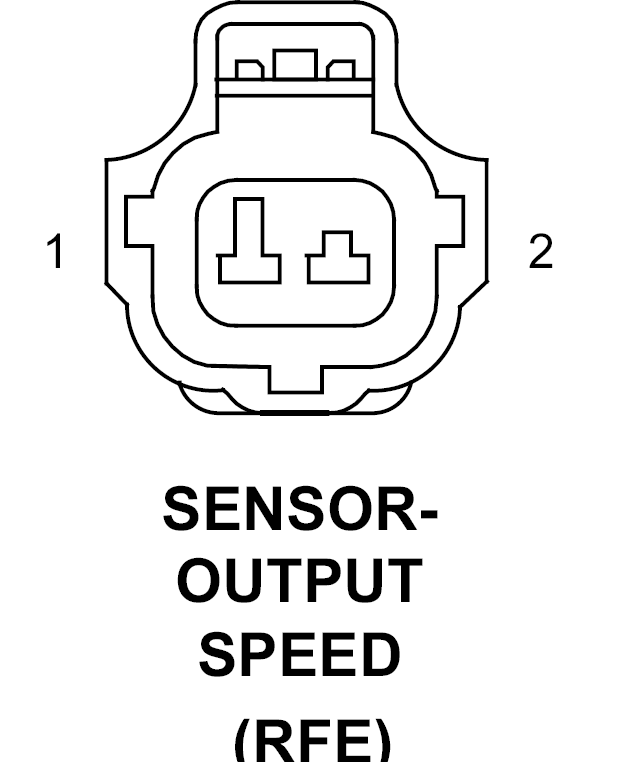

SENSOR-OUTPUT SPEED - BLACK 2-WAY(RFE)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
T14 20DG/BR
OUTPUT SPEED SENSOR SIGNAL
2
T13 20DG/VT
SENSOR GROUND
Courtesy of CHRYSLER CORP.
