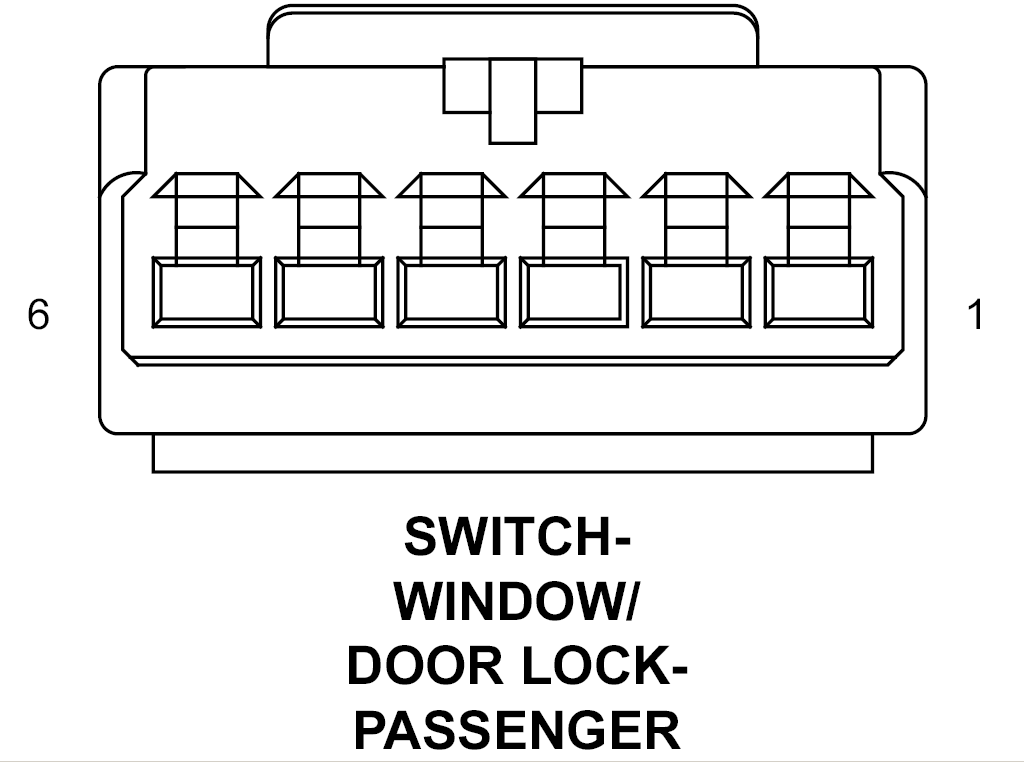

Passenger Window Switch/Door Lock Switch Connector End View
SWITCH-WINDOW/DOOR LOCK-PASSENGER - 6-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q15 20OR/LB | WINDOW LOCK OUT SWITCH OUTPUT |
| 2 | Q336 20OR/GY | PASSENGER WINDOW EXPRESS SWITCH MUX |
| 3 | Q936 20OR/LG | PASSENGER WINDOW EXPRESS SWITCH RETURN |
| 4 | G776 20VT/OR | RIGHT DOOR LOCK SWITCH RETURN (LHD) |
| 4 | G775 20OR/VT | LEFT DOOR LOCK SWITCH RETURN (RHD) |
| 5 | G160 20VT/LG | RIGHT DOOR LOCK SWITCH MUX (LHD) |
| 5 | G161 20VT/DG | LEFT DOOR LOCK SWITCH MUX (RHD) |
| 6 | A929 20RD/DB | FUSED RUN/ACCESSORY DELAY RELAY OUTPUT |
