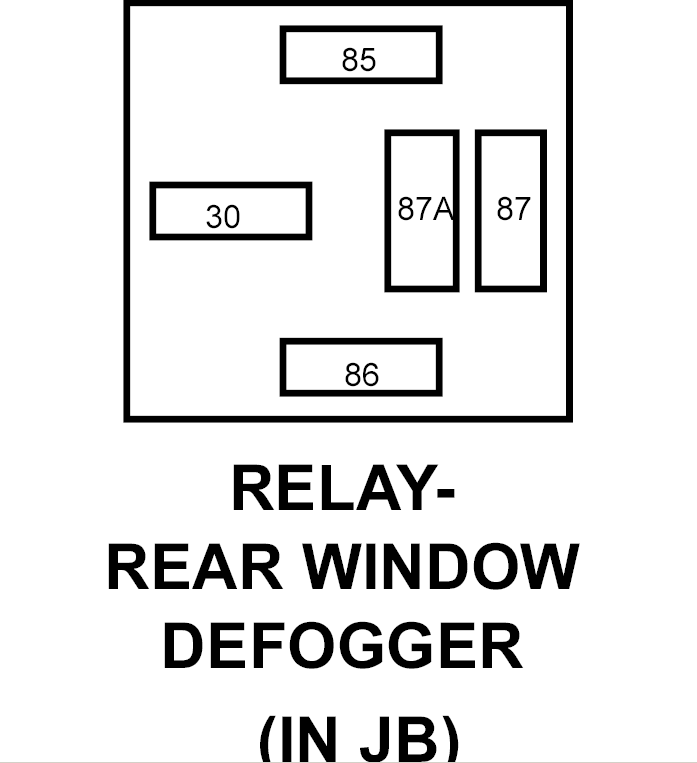

Rear Window Defogger Relay Connector End View
RELAY-REAR WINDOW DEFOGGER - 0-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A908 12RD |
FUSED B(+) |
| 85 |
C115 20DB |
DEFOGGER RELAY CONTROL |
| 86 |
INTERNAL |
FUSED RUN RELAY OUTPUT |
| 87 |
INTERNAL |
REAR WINDOW DEFOGGER RELAY OUTPUT |
| 87A |
- |
- |
