Right Front Impact Sensor Connector End View

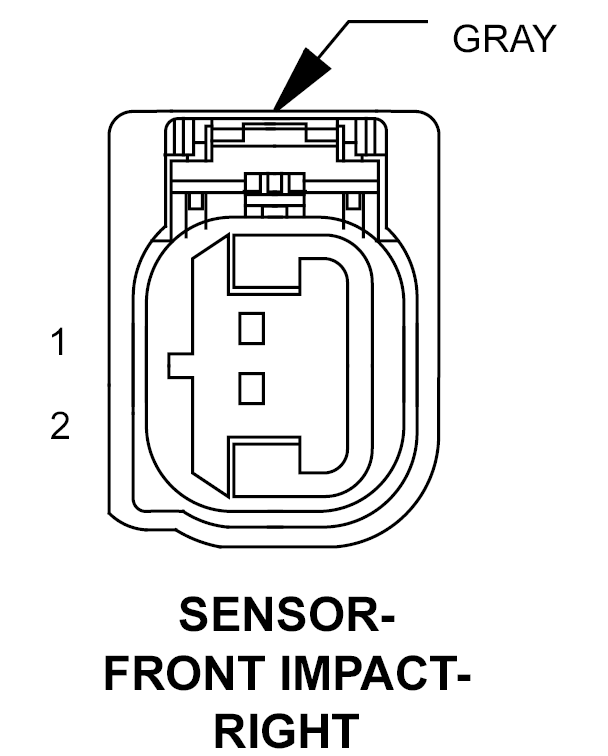

SENSOR-FRONT IMPACT-RIGHT - GRAY 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R82 20WT/LB
RIGHT FRONT IMPACT SENSOR GROUND
2
R80 20VT/LB
RIGHT FRONT IMPACT SENSOR SIGNAL
Courtesy of CHRYSLER CORP.
