Right Front Wheel Speed Sensor Connector End View

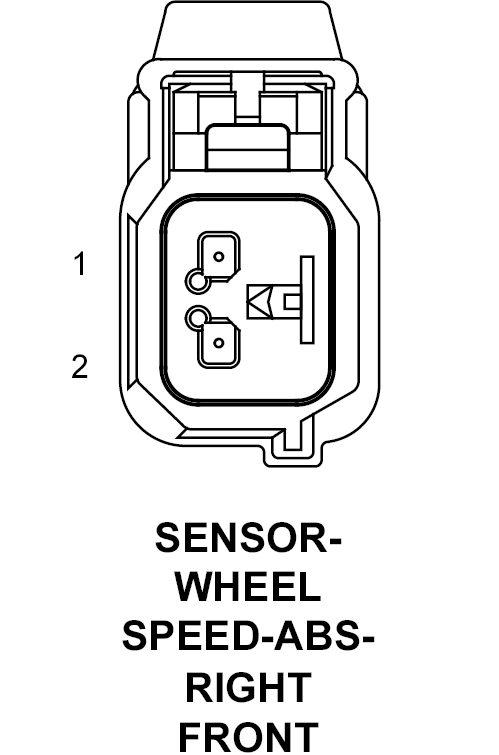

SENSOR-WHEEL SPEED-ABS-RIGHT FRONT - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
B7 18DG/VT
RIGHT FRONT WHEEL SPEED SENSOR SUPPLY
2
B6 18DG/TN
RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
Courtesy of CHRYSLER CORP.
