Right Remote Radio Switch Connector End View

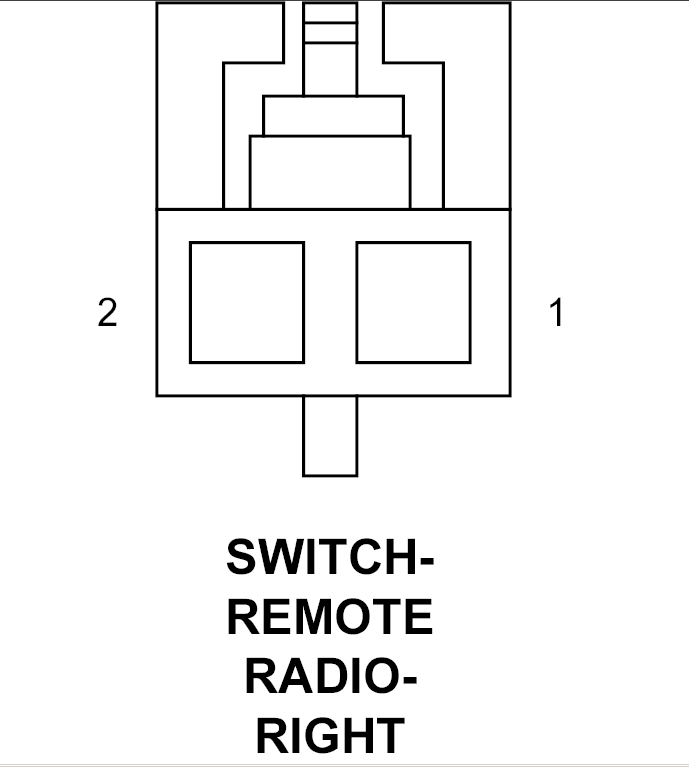

SWITCH-REMOTE RADIO-RIGHT - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
X20 20GY/WT
RADIO CONTROL MUX
2
X920 20GY/OR
RADIO CONTROL MUX RETURN
Courtesy of CHRYSLER CORP.
