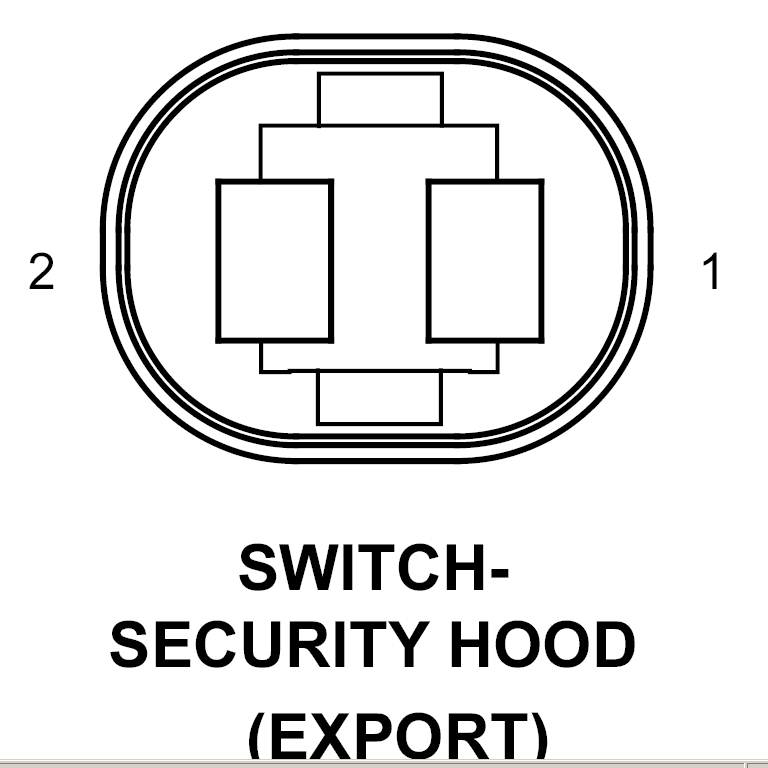

Security Hood Switch (Export) Connector End View
SWITCH-SECURITY HOOD - 2-WAY(EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G70 20VT/LB
HOOD AJAR SWITCH SENSE
2
Z384 20BK
GROUND
Courtesy of CHRYSLER CORP.
