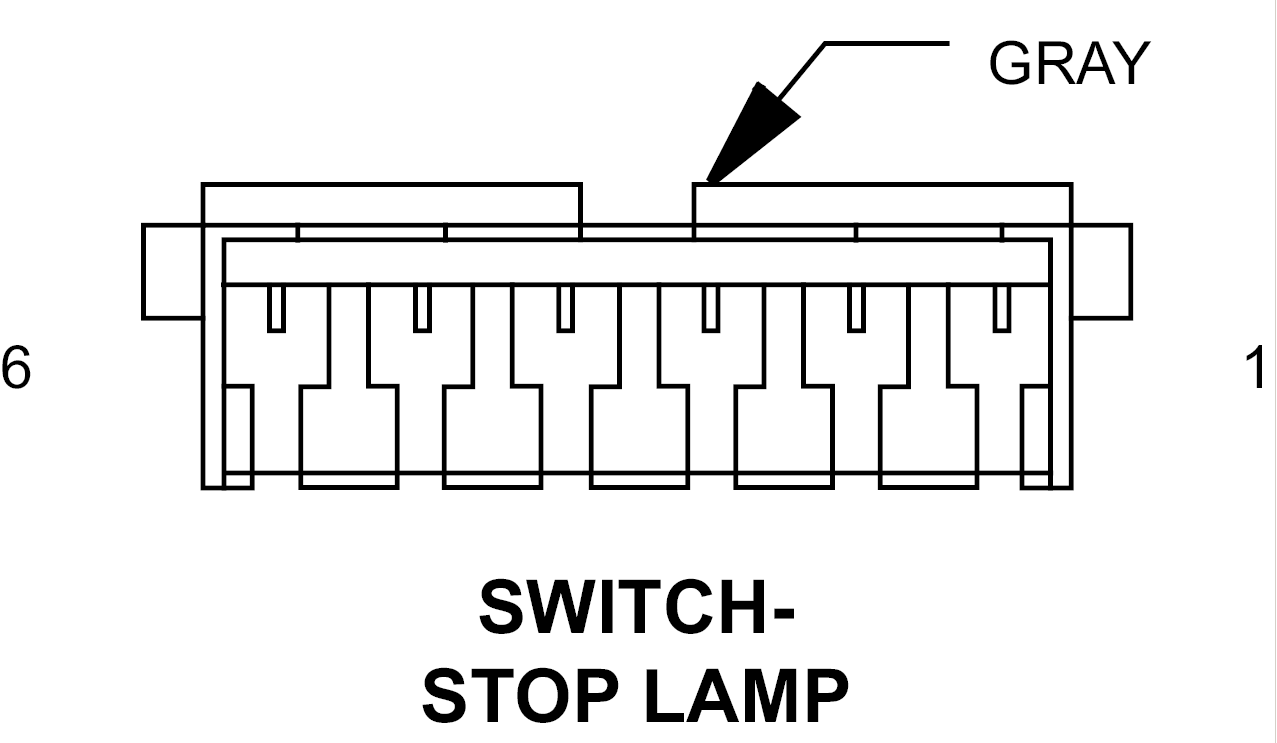

Stop Lamp Switch Connector End View
SWITCH-STOP LAMP - GRAY 6-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A103 18GY/RD | FUSED B(+) |
| 2 | L50 18WT/TN | BRAKE LAMP SWITCH OUTPUT |
| 3 | F942 20PK/LG | FUSED IGNITION SWITCH OUTPUT (RUN-START) (3.7L/5.7L) |
| 3 | V30 20VT/WT | S/C BRAKE SWITCH OUTPUT (4.7L) |
| 3 | F904 18BK | GROUND (DIESEL) |
| 4 | B16 20LB/DG | BRAKE SWITCH NO. 2 SIGNAL (3.7L/5.7L) |
| 4 | V32 20VT/YL | S/C SUPPLY (4.7L) |
| 4 | B15 20DG/WT | BRAKE SWITCH NO. 1 SIGNAL (DIESEL) |
| 5 | Z904 20BK | GROUND (3.7L/5.7L) |
| 5 | Z904 18BK | GROUND (4.7L) |
| 6 | B16 20LB/DG | BRAKE SWITCH NO. 2 SIGNAL (DIESEL) |
| 6 | B15 20DG/WT | BRAKE SWITCH NO. 1 SIGNAL (GAS) |
