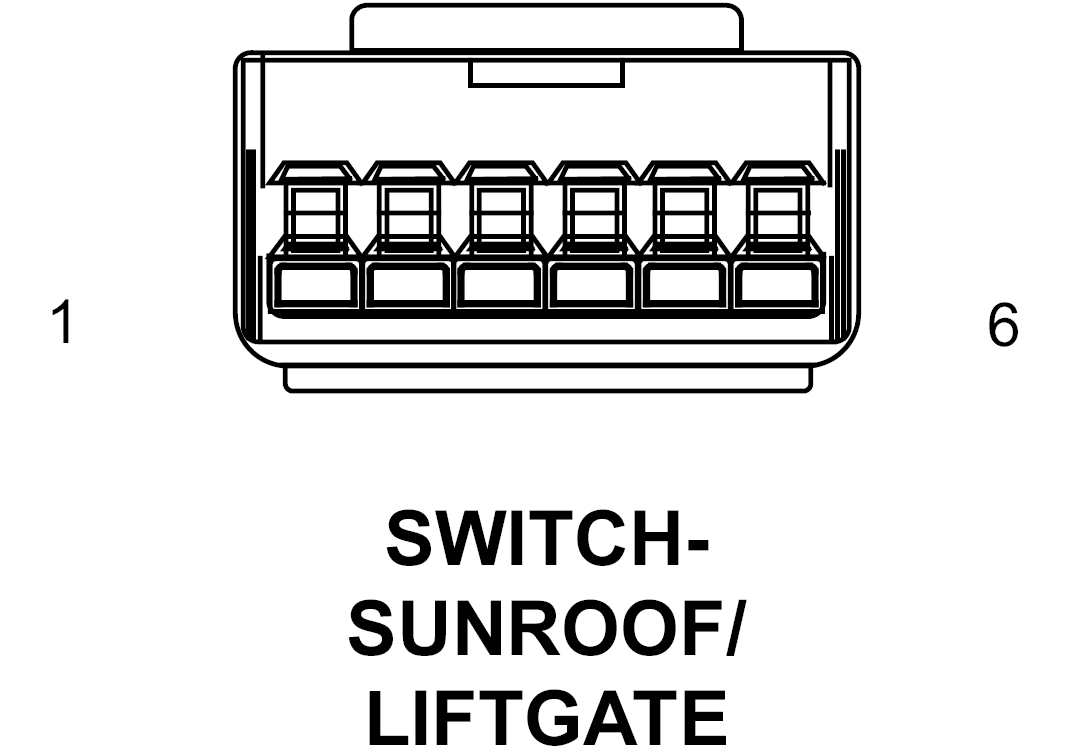

Sunroof Switch/Liftgate Switch Connector End View
SWITCH-SUNROOF/LIFTGATE - 6-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q4 20OR/YL | SUNROOF VENT SWITCH SENSE (SUNROOF) |
| 2 | Q6 20OR/LG | SUNROOF SWITCH SUPPLY (SUNROOF) |
| 3 | Q3 20OR/TN | SUNROOF OPEN SWITCH SENSE (SUNROOF) |
| 4 | Q5 20OR/LB | SUNROOF CLOSE SWITCH SENSE (SUNROOF) |
| 5 | Z915 20BK | GROUND (POWER LIFTGATE) |
| 6 | G25 20VT/TN | DECKLID/LIFTGATE RELEASE SWITCH SENSE (POWER LIFTGATE) |
