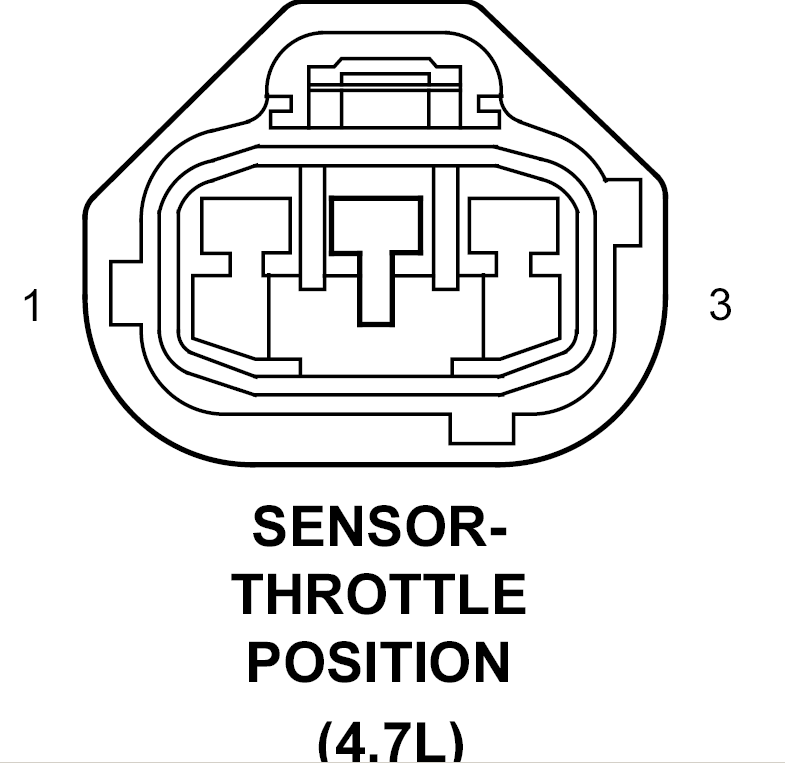

Throttle Position Sensor (4.7L) Connector End View
SENSOR-THROTTLE POSITION - 3-WAY(4.7L)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
F855 20PK/YL
5 VOLT SUPPLY
2
K22 18BR/OR
TP NO. 1 SIGNAL
3
K900 20DB/DG
SENSOR GROUND
