Washer Fluid Level Sensor Connector End View

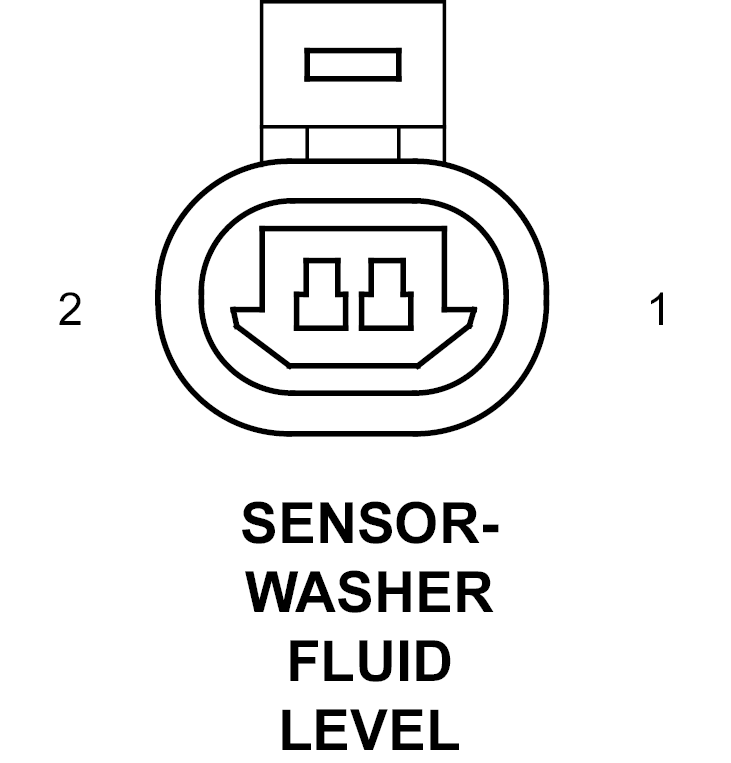

SENSOR-WASHER FLUID LEVEL - 2-WAY

GXK780385Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 W1 20BR/TN WASHER FLUID LEVEL SENSOR SIGNAL
2 Z384 20BK GROUND
