Windshield Washer Pump Connector End View

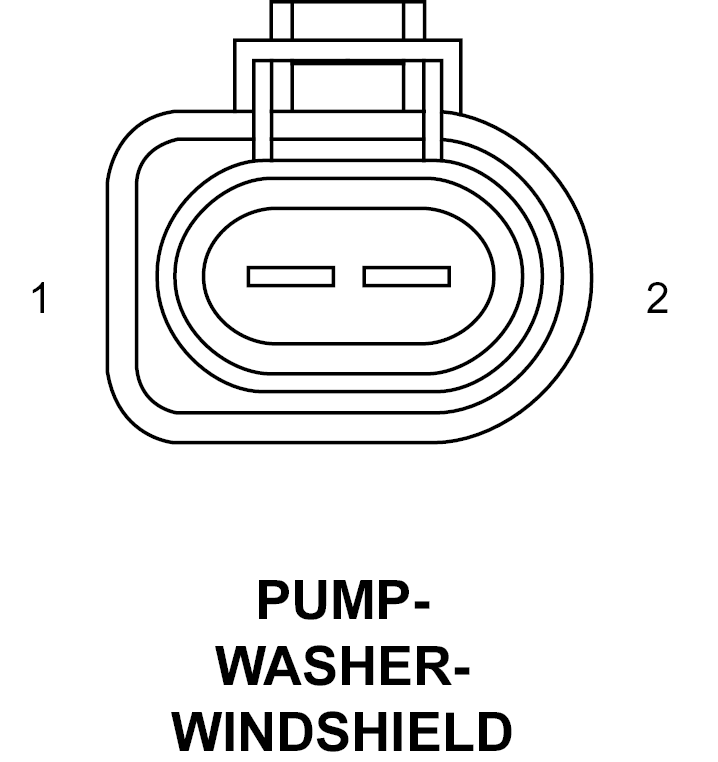

PUMP-WASHER-WINDSHIELD - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
W20 20BR/YL
REAR WASHER PUMP MOTOR CONTROL
2
W10 20BR
FRONT WASHER PUMP MOTOR CONTROL
Courtesy of CHRYSLER CORP.
