Shock Spring

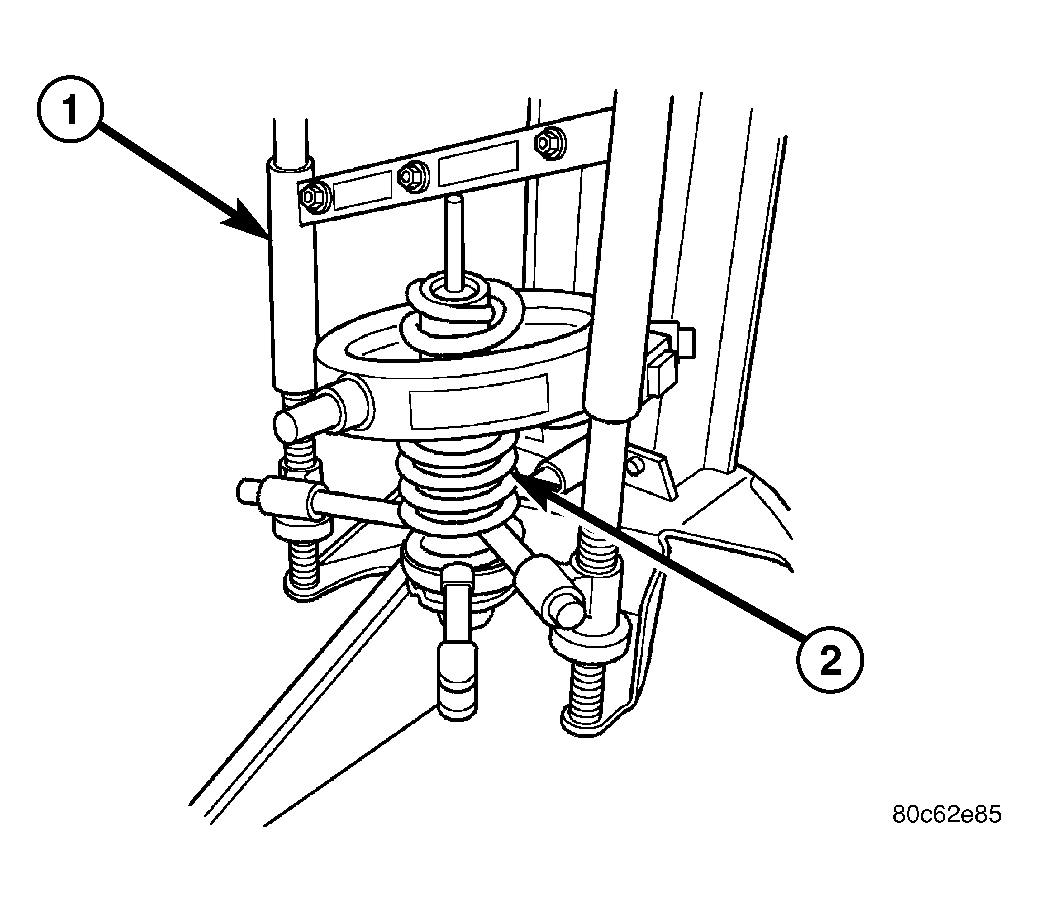

Fig 1: Spring Compressor
GC0026781Courtesy of CHRYSLER LLC
1 - SPRING COMPRESSOR
2 - SPRING
  1. Remove the shock. See REMOVAL .
  2. Install the shock assembly in the Branick 7200® spring removal/installation tool or equivalent (1).
  3. Compress the spring (2).

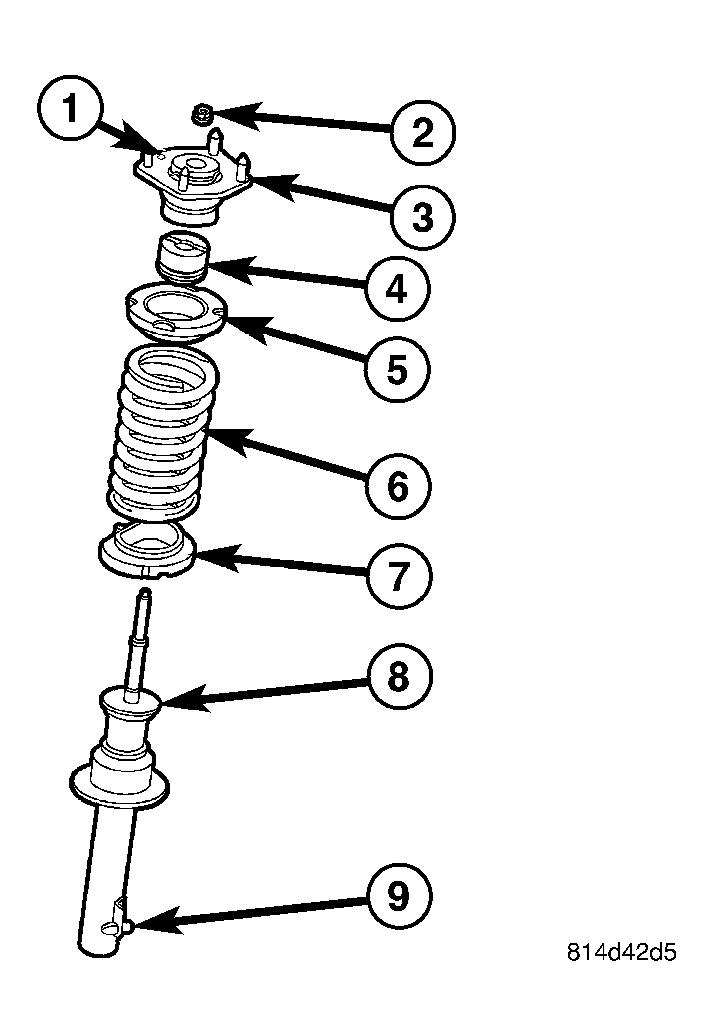

    Fig 2: Shock Orientation
    GC0026782Courtesy of CHRYSLER LLC
  4. Remove the upper shock nut (2).
    NOTE: The nub (1) in the upper shock mount (3) must be 180° from the centerline of the lower bracket (9) on the shock (8) for proper installation.
  5. Remove the shock (8).
  6. Remove the shock upper mount (3).
  7. Remove and inspect the upper (5) and lower (7) spring isolators.
