Adjustable Pedals Module

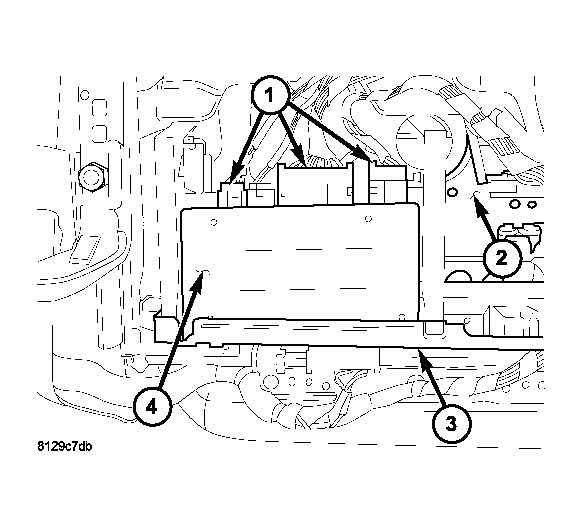

Fig 1: Memory Seat Module - Removal/Installation
GC0027607Courtesy of CHRYSLER LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the driver seat cushion/cover (2). Refer to REMOVAL .
  3. Pivot the module upward and disconnect the electrical connectors (1).
  4. Unsnap the adjustable pedals module (4) from the side brackets.
  5. Pull the module rearward to remove it from the front of the seat frame (3).
