Engine Control Module (ECM)

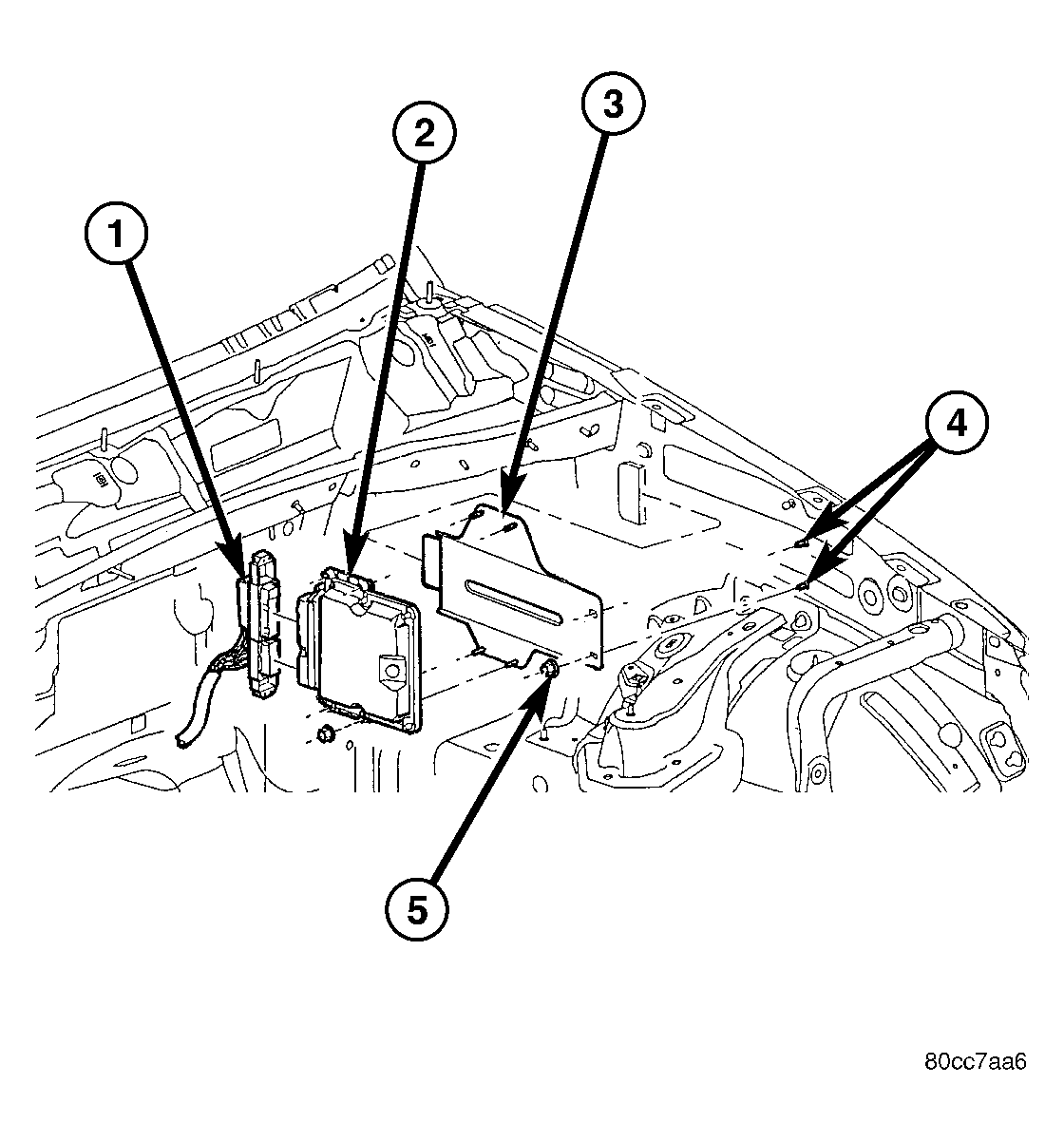

Fig 1: Engine Control Module (ECM) Removal/Install

Courtesy of CHRYSLER LLC

1 - ECM ELECTRICAL CONNECTORS

2 - ENGINE CONTROL MODULE (ECM)

3 - ECM MOUNTING BRACKET

4 - ECM MOUNTING BRACKET MOUNTING STUDS

5 - MOUNTING BRACKET RETAINING NUTS

The Engine Control Module (ECM) is located in the left side of engine compartment attached to the left inner fender behind the battery.
