Module-Glow Plug: Removal: ECM

  1. Disconnect the negative battery cable.

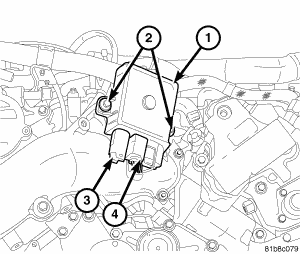

    Fig 1: Glow Plug Module Removal
    GC0052481Courtesy of CHRYSLER LLC
  2. Disconnect the battery positive harness connector (3) from the glow plug module.
  3. Disconnect the glow plug harness connector (4).
  4. Remove the two glow plug module bolts (2).
  5. Remove the glow plug module (1).
