Transmission Control Module - 3.7L Gas/3.0L Diesel Vehicles

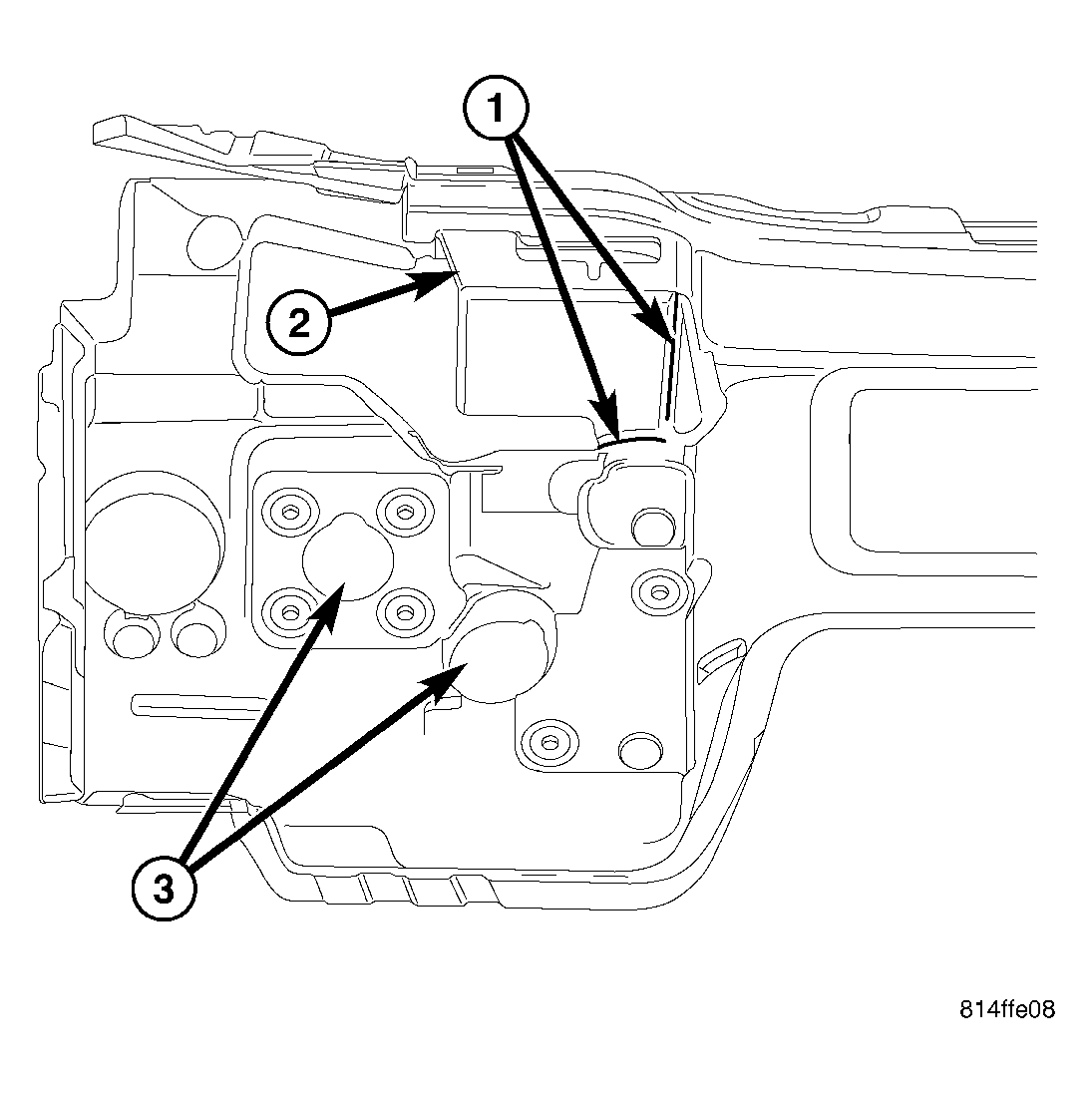

Fig 1: Dash Panel Silencer Pad

Courtesy of CHRYSLER LLC

1 - CUT LINES

2 - DASH PANEL SILENCER PAD

3 - STEERING COLUMN LOCATION

1. Locate the transmission control module on the dash panel, under the dash panel silencer pad (2), just to the right of the steering column. See Fig 1.
2. Locate the cut lines (1) marked on the silencer pad. Cut the pad along these lines.
   Fig 2: Transmission Control Module Location - 3.0L & 3.7L Vehicles

   Courtesy of CHRYSLER LLC

   1 - TRANSMISSION CONTROL MODULE

   2 - DASH PANEL

   3 - WIRING CONNECTORS

3. Remove the transmission control module from the dash panel or bracket.
4. Disconnect the wiring harness connectors (3) from the module.
5. Remove the module from the vehicle.
