Front Wiper Module

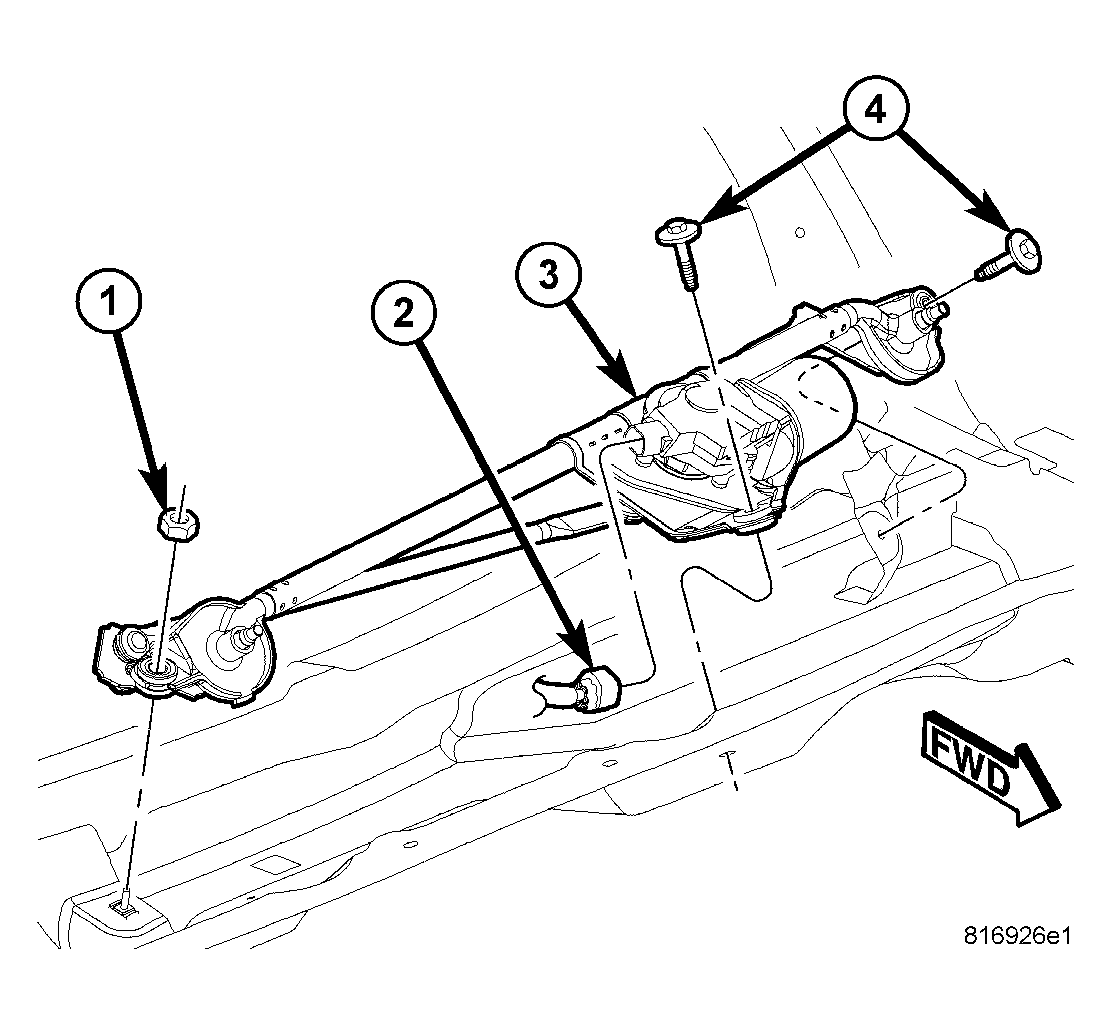

Fig 1: Remove/Install Wiper Module
GC0045762Courtesy of CHRYSLER LLC
NOTE: The front wiper motor can be removed from the wiper module and is serviced independently from the remainder of the wiper module for this vehicle. See REMOVAL .
  1. Disconnect and isolate the battery negative cable.
  2. Remove both front wiper arms from the wiper pivots. See REMOVAL .
  3. Remove the cowl plenum cover/grille panel from over the front wiper module. Refer to REMOVAL .
  4. Remove the nut (1) that secures the inboard end of the front wiper module bracket (3) to the stud in the cowl plenum.
  5. Remove the two screws (4) that secure the module bracket to the cowl plenum.
  6. Disconnect the wire harness connector (2) from the connector receptacle for the front wiper motor.
  7. Remove the wiper module from the cowl plenum as a unit.
