Glow Plug Module (Diesel) Connector End View

MODULE-GLOW PLUG (DIESEL)

CAV  CIRCUIT  FUNCTION
1 A904 10RD FUSED B(+)

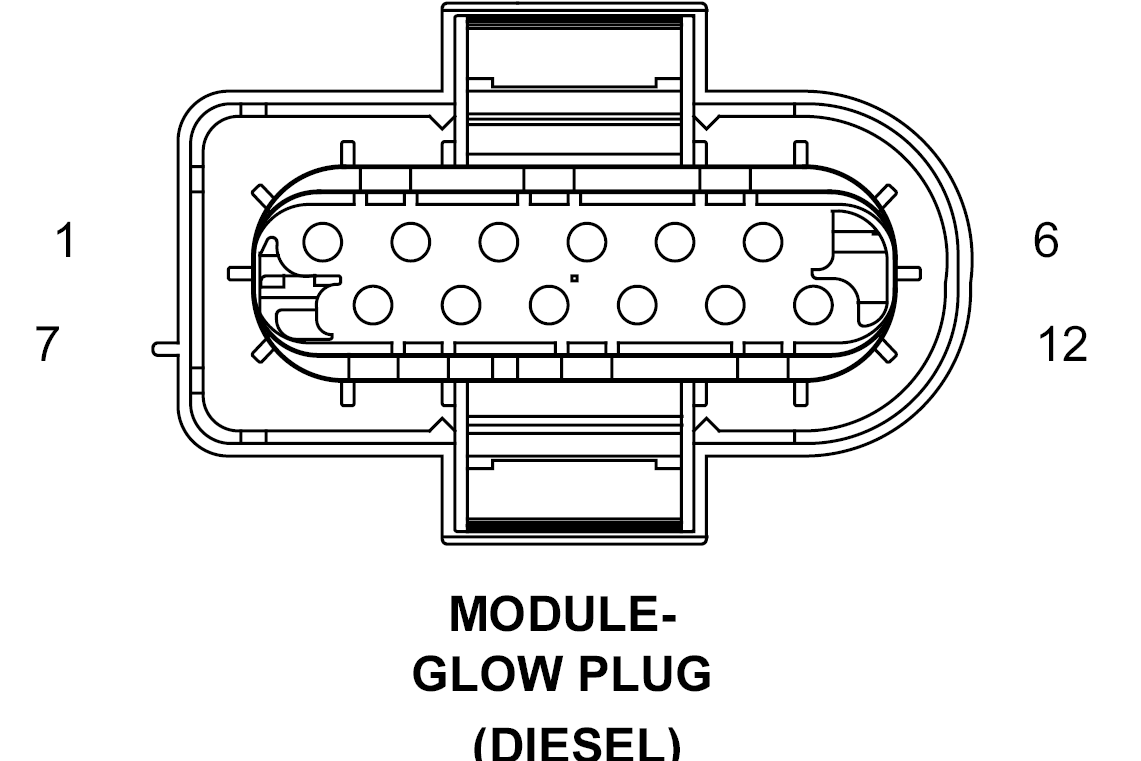

MODULE-GLOW PLUG - 12-WAY(DIESEL)

GXK780231Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A202 16BK/BL GLOW PLUG NO. 1 CONTROL
2 A203 16BK/VT GLOW PLUG NO. 2 CONTROL
3 A204 16BK/RD GLOW PLUG NO. 3 CONTROL
4 A208 16BK/YL GLOW PLUG NO. 4 CONTROL
5 A15 20RD/DG FUSED ASD RELAY OUTPUT
6 Z921 18BR GROUND
7 A211 16BK/DG GLOW PLUG NO. 5 CONTROL
8 A216 16BK/WT GLOW PLUG NO. 6 CONTROL
9 - -
10 - -
11 - -
12 D509 20WT/BL LIN BUS
