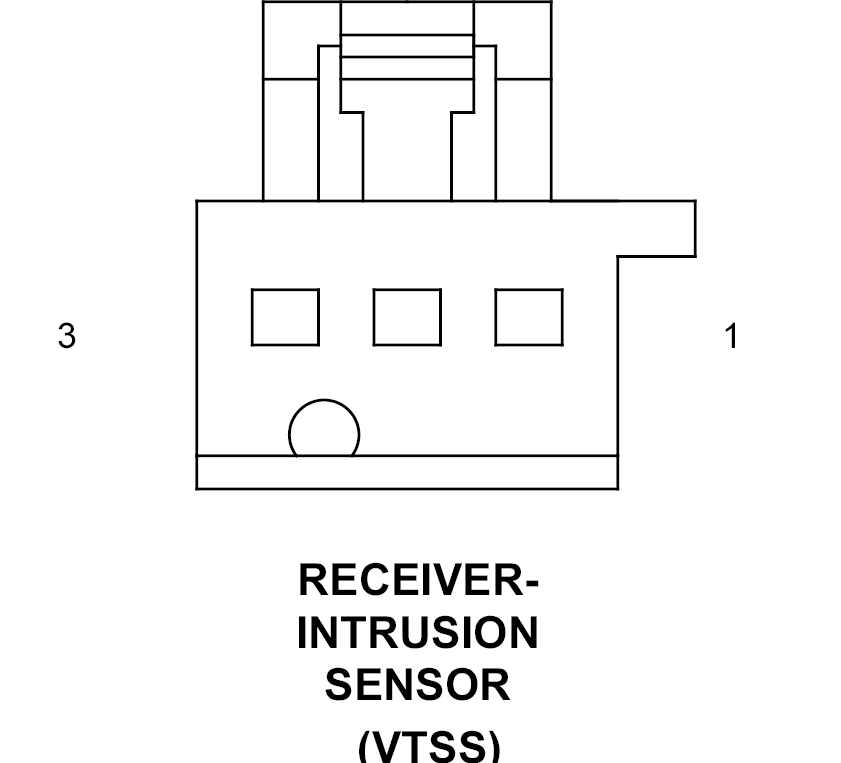

Intrusion Sensor Vehicle Theft Security System Receiver Connector End View

RECEIVER-INTRUSION SENSOR - 3-WAY(VTSS)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	G460 20DG/VT	INTRUSION RECEIVER SENSOR SIGNAL
2	-	-
3	G946 20LG/VT	SENSOR GROUND
