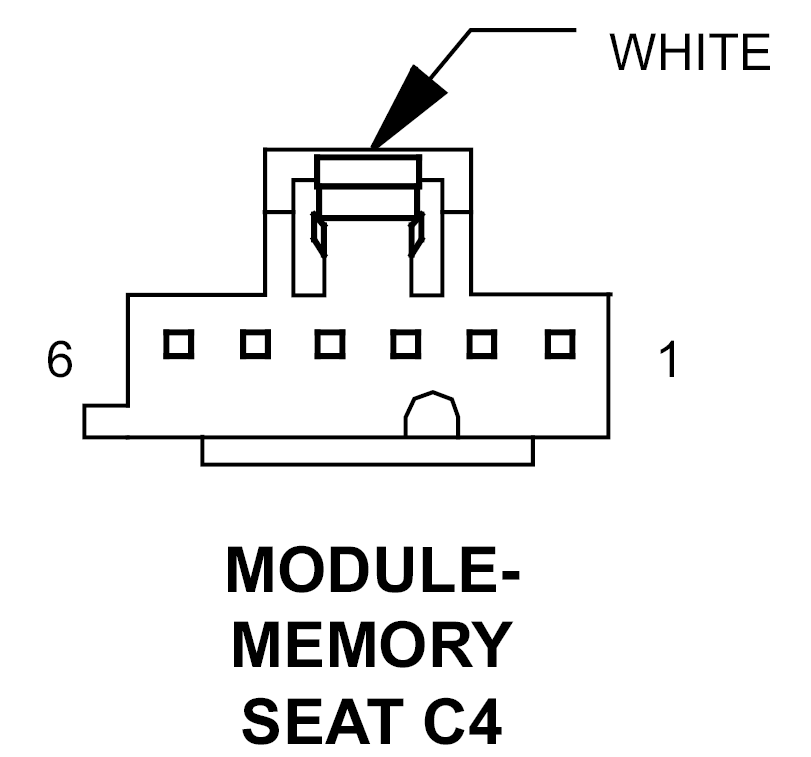

Memory Seat Module Connector End View (C4)
MODULE-MEMORY SEAT C4 - WHITE 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
P599 20LG/TN |
DRIVER SEAT SWITCH MUX RETURN |
| 2 |
P239 20LG/WT |
DRIVER SEAT SWITCH REAR VERTICAL/HORIZONTAL SWITCH MUX |
| 3 |
P339 20LG/DB |
DRIVER SEAT SWITCH FRONT VERTICAL/RECLINER SWITCH MUX |
| 4 |
- |
- |
| 5 |
- |
- |
| 6 |
P9 20LG/OR |
DRIVER SEAT SWITCH SUPPLY |
