Compass Module Connector End View

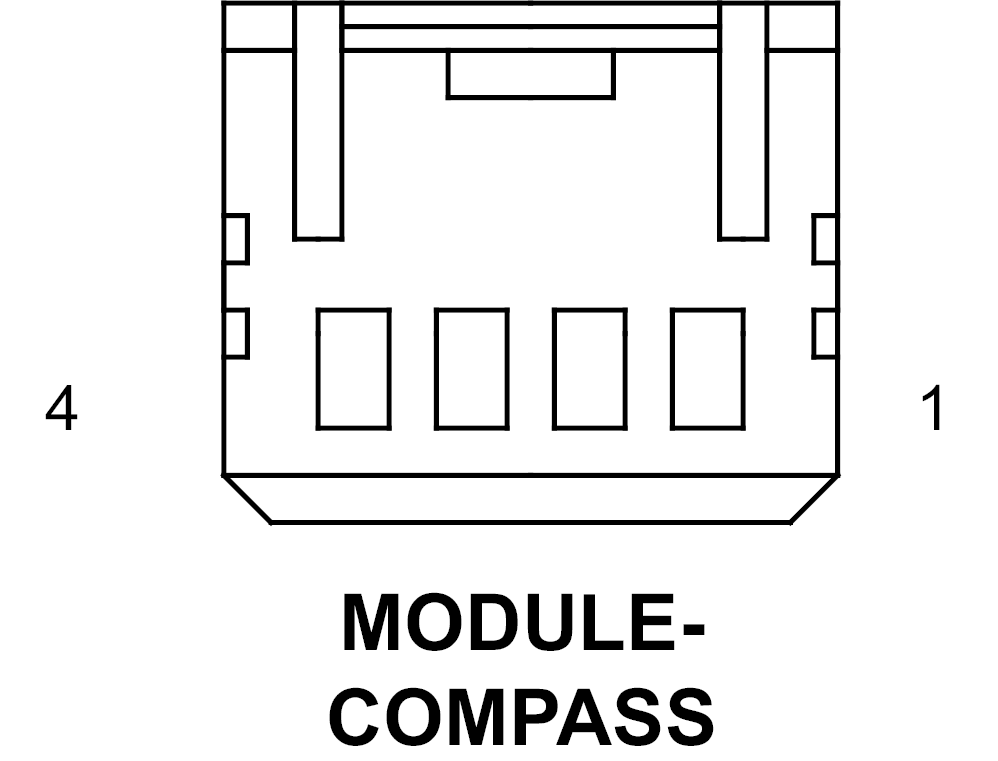

MODULE-COMPASS - 4-WAY

GXK780213Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 D500 20WT LIN BUS
3 Z915 20BR GROUND (BASE)
3 Z915 20BK GROUND (EXCEPT BASE)
4 F921 20PK/YL FUSED RUN RELAY OUTPUT
