Dynamics Sensor Connector End View

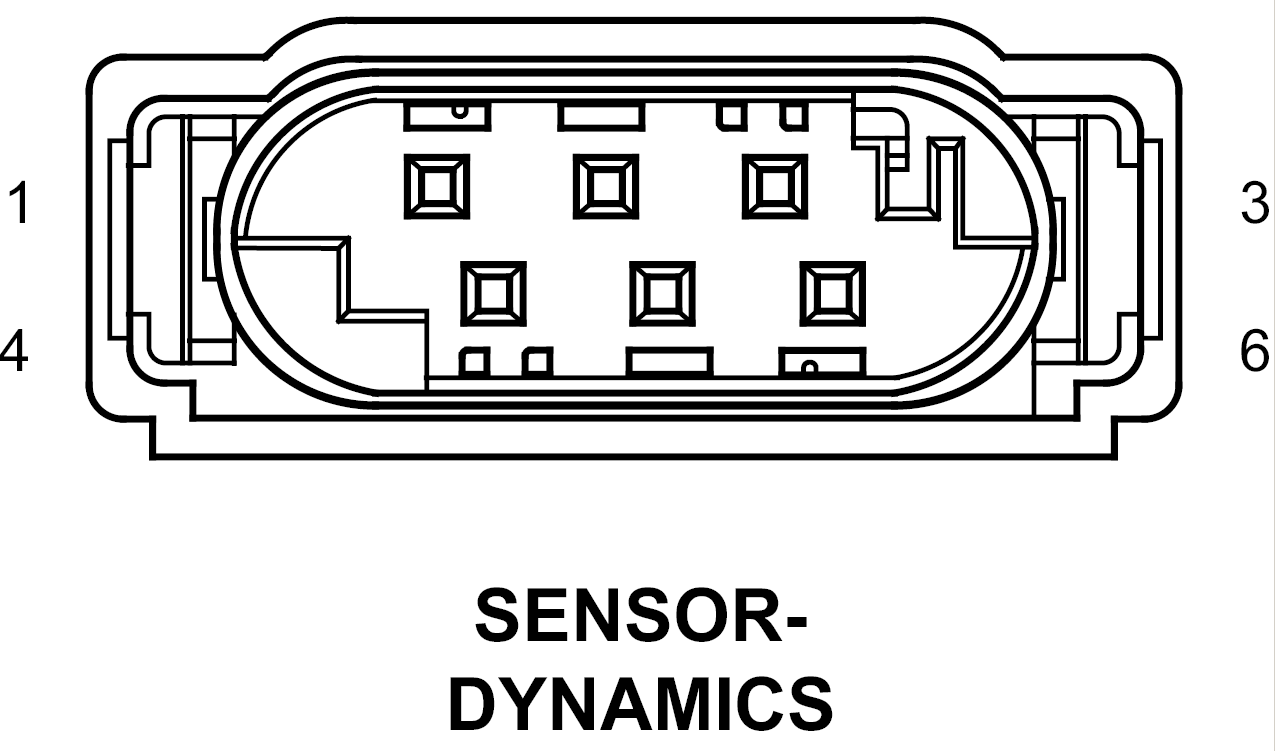

SENSOR-DYNAMICS - 6-WAY

GXK780319Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 D51 20WT/BR DYNAMICS SENSOR LOW DATA LINK
2 D52 20WT/LB DYNAMICS SENSOR HIGH DATA LINK
3 G4 20VT/LB DYNAMICS SENSOR SUPPLY
4 - -
5 G94 20VT/DB DYNAMICS SENSOR GROUND
6 - -
