Electronic Overhead Module Connector End View

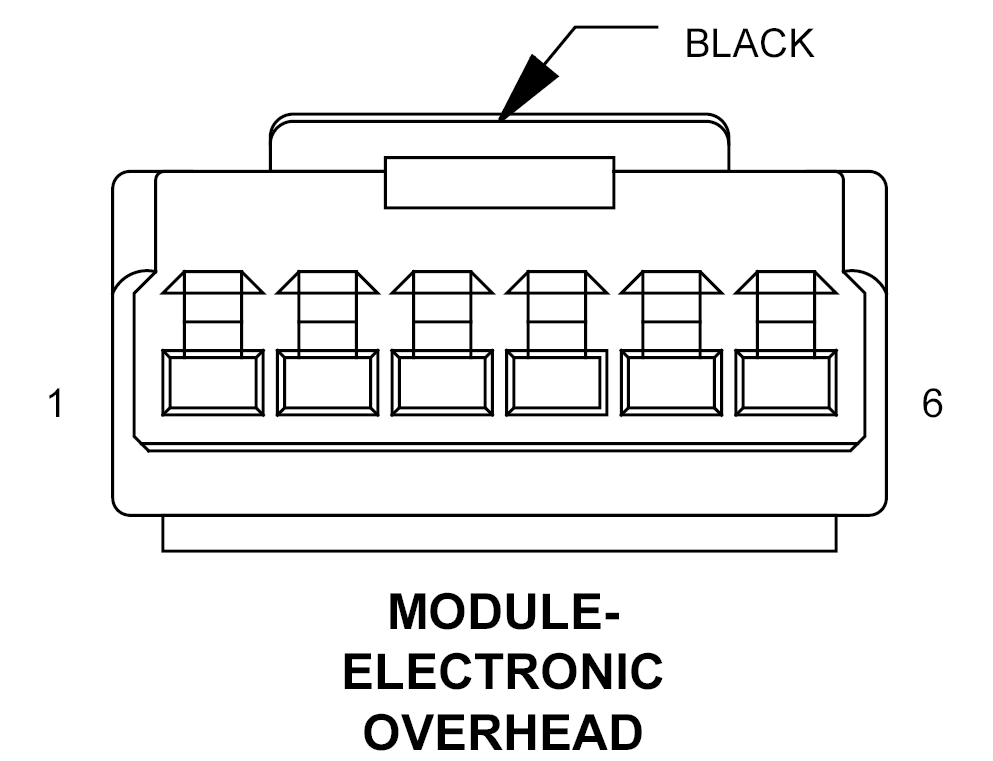

MODULE-ELECTRONIC OVERHEAD - BLACK 6-WAY

GXK780219Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 - -
3 Z915 20BK GROUND
4 A114 20GY/RD FUSED B(+)
5 D500 20WT LIN BUS
6 - -
