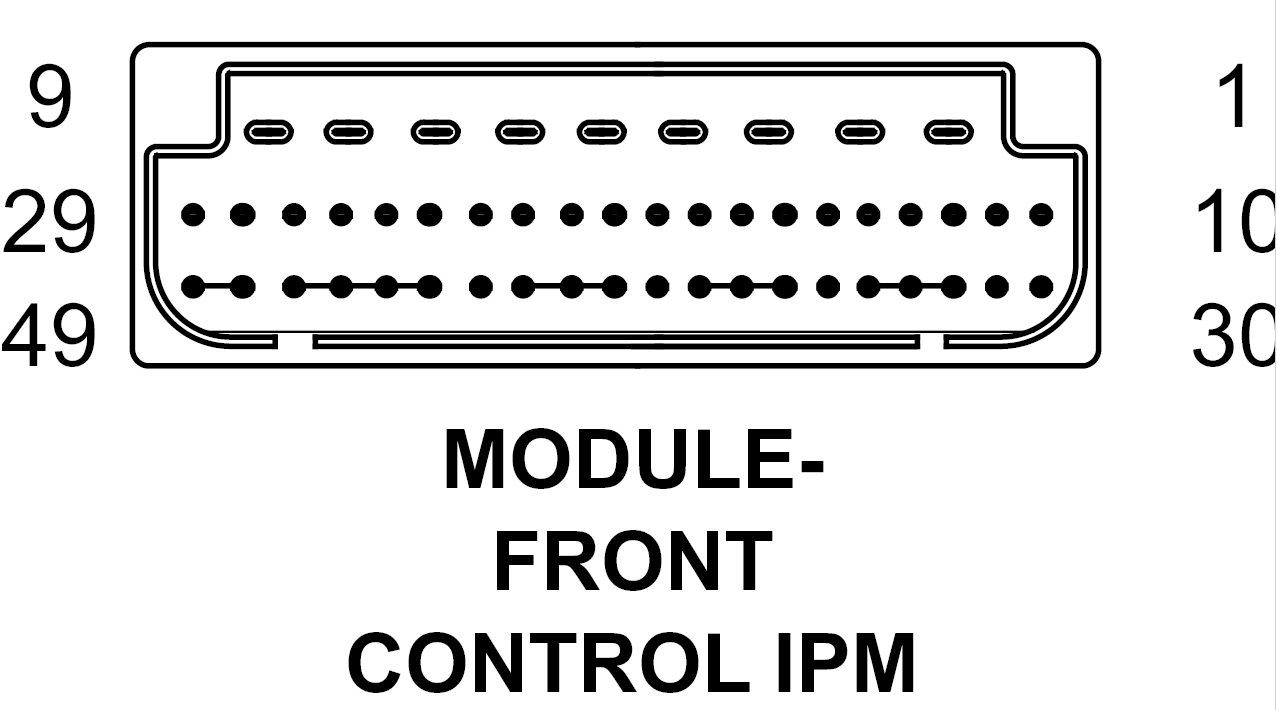

Front Control Ipm Module Connector End View

MODULE-FRONT CONTROL IPM - 49-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	INTERNAL	FUSED B(+)
3	INTERNAL	FUSED B(+)
4	INTERNAL	FUSED B(+)
5	INTERNAL	FUSED B(+)
6	-	-
7	INTERNAL	BACKUP LAMP FEED
8	-	-
9	-	-
10	K360 20GY/BR	PTC NO. 1 RELAY CONTROL DIESEL
11	W20 18BR/YL	REAR WASHER PUMP MOTOR CONTROL
12	W10 18BR	FRONT WASHER PUMP MOTOR CONTROL
13	INTERNAL	FUSED IGNITION SWITCH OUTPUT (RUN-START)
14	K361 20BR/WT	PTC NO. 2 RELAY CONTROL DIESEL
15	INTERNAL	FUSED B(+) (I.O.D.)
16	-	-
17	INTERNAL	FUSED IGNITION SWITCH OUTPUT (RUN-START)
18	INTERNAL	GROUND
19	Z131 18BK/DG	GROUND
20	-	-
21	INTERNAL	RIGHT TRAILER TOW BRAKE LAMP RELAY CONTROL (TRAILER TOW)
22	INTERNAL	LEFT TRAILER TOW BRAKE LAMP RELAY CONTROL (TRAILER TOW)
23	-	-
24	INTERNAL	GROUND
25	INTERNAL	GROUND
26	INTERNAL	FRONT FOG LAMP RELAY CONTROL
27	INTERNAL	WIPER ON/OFF RELAY CONTROL
28	INTERNAL	REAR FOG LAMP RELAY CONTROL
29	INTERNAL	HIGH/LOW WIPER RELAY CONTROL
30	A15 16RD/TN	FUSED ASD RELAY OUTPUT
31	W7 20BR/GY	FRONT WIPER PARK SWITCH SENSE
32	Z131 18BK/DG	GROUND
33	INTERNAL	GROUND
34	L62 18WT/OR	RIGHT REAR TURN SIGNAL CONTROL
35	C918 20BK/LB	FCM SENSOR RETURN
36	-	-
37	W12 20BR/OR	REAR WIPER RELAY CONTROL
38	P305 20LG/LB	ACCESSORY DELAY RELAY CONTROL
39	INTERNAL	LOW SPEED RADIATOR FAN RELAY CONTROL (3.7L/4.7L)
40	-	-
41	Z387 18BK	GROUND
42	-	-
43	L63 18WT/DG	LEFT REAR TURN SIGNAL CONTROL
44	G70 20VT/LB	HOOD AJAR SWITCH SENSE (EXCEPT EXPORT)
45	K173 20BR/VT	HYDRAULIC RADIATOR FAN SOLENOID CONTROL (5.7L)
46	INTERNAL	ADJUSTABLE PEDALS RELAY CONTROL (ADJUSTABLE PEDALS)
47	INTERNAL	HORN RELAY CONTROL
48	INTERNAL	PARK LAMP RELAY CONTROL
49	INTERNAL	RADIATOR FAN HIGH RELAY CONTROL (3.7L)
