Fuel Pump Module Connector End View

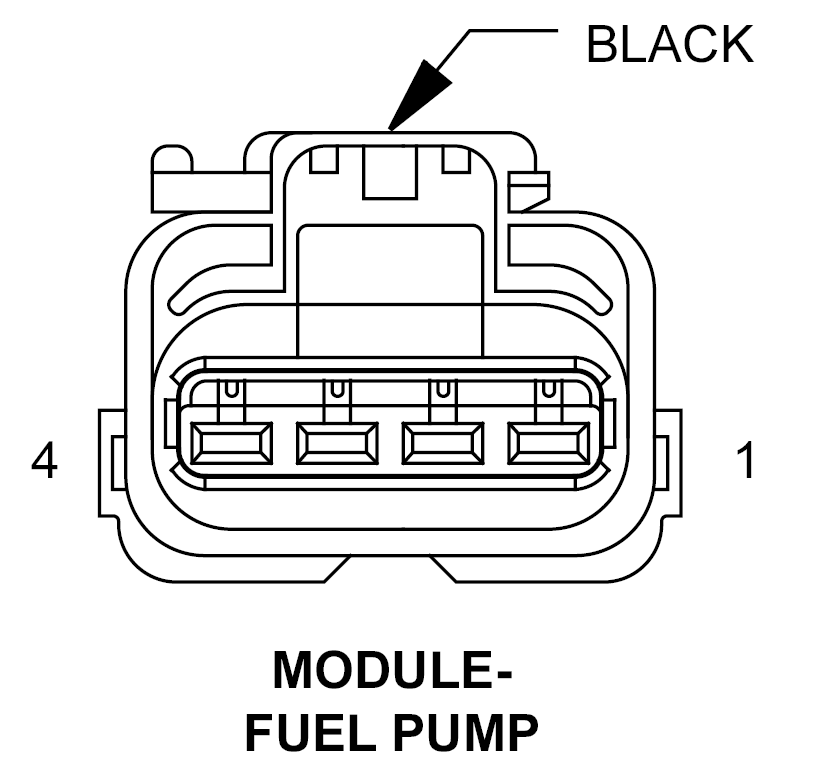

MODULE-FUEL PUMP - BLACK 4-WAY

GXK780229Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z912 18BK GROUND
2 Z210 20BK GROUND
3 N4 20DB/YL FUEL LEVEL SENSOR NO. 1 SIGNAL
4 A109 16TN/RD FUEL PUMP RELAY OUTPUT
