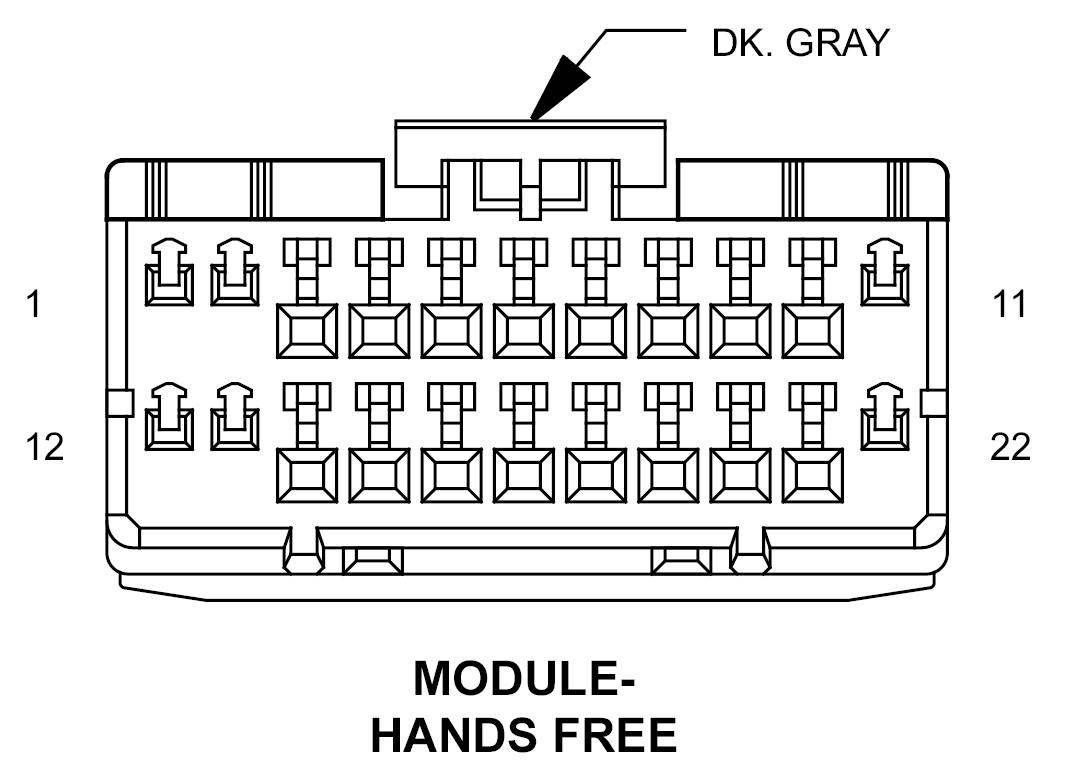

Hands Free Module Connector End View
MODULE-HANDS FREE - DK. GRAY 22-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A114 18GY/RD | FUSED B(+) |
| 2 | - | - |
| 3 | - | - |
| 4 | D54 20WT | CAN B BUS (-) |
| 5 | X722 20LB/DG | MICROPHONE 2 IN (+) |
| 6 | - | - |
| 7 | - | - |
| 8 | X703 20DG/OR | LEFT AUDIO OUTPUT |
| 9 | X704 20DG/YL | RIGHT AUDIO OUTPUT |
| 10 | X795 20DG | COMMON AUDIO OUTPUT |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | D55 20WT/OR | CAN B BUS (+) |
| 15 | X730 20GY/YL | VOICE RECOGNITION/PHONE SWITCH SIGNAL |
| 16 | X712 20DG/LB | MICROPHONE 1 IN (+) |
| 17 | X792 20LB/YL | MICROPHONE IN (-) |
| 18 | X735 20GY/LB | HANDS FREE MICROPHONE SHIELD |
| 19 | - | - |
| 20 | X793 20DG/OR | MICROPHONE FEED |
| 21 | X835 20OR/GY | SENSOR GROUND |
| 22 | Z907 20BK | GROUND |
