Map Sensor Connector End View

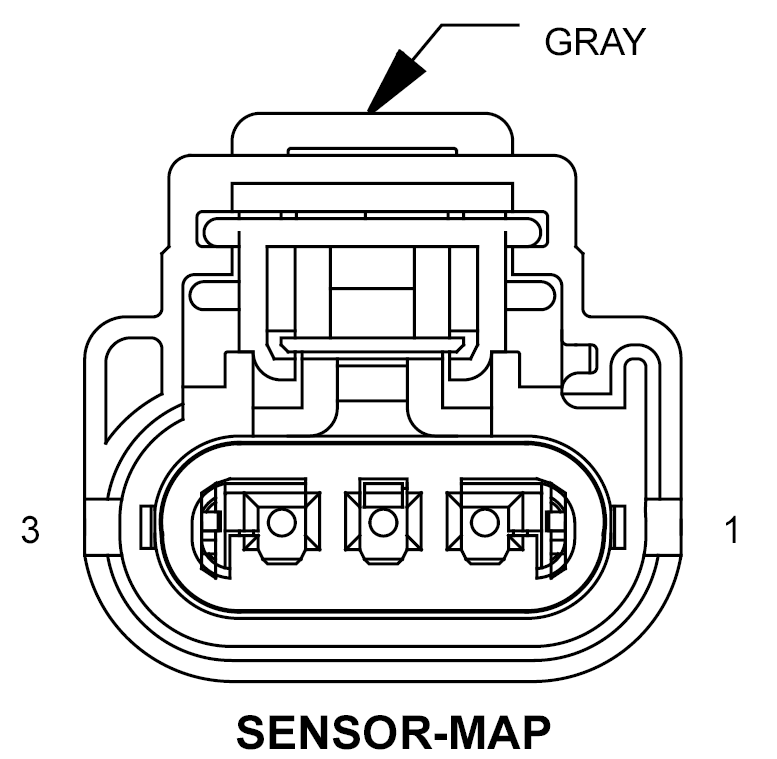

SENSOR-MAP - GRAY 3-WAY

GXK780340Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K1 20VT/BR MAP SIGNAL
2 K900 20DB/DG SENSOR GROUND
3 F856 20YL/PK 5 VOLT SUPPLY
