Memory Set Switch Connector End View

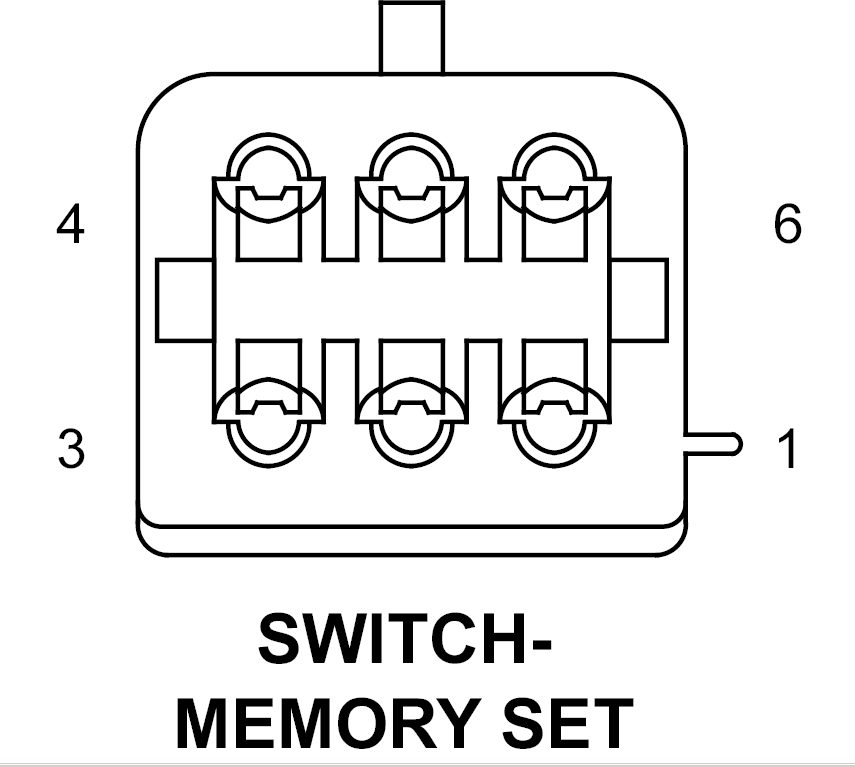

SWITCH-MEMORY SET - 6-WAY

GXK780418Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 - -
3 - -
4 - -
5 P439 20LG/OR MEMORY SELECT SWITCH MUX
6 G920 20VT/YL MEMORY SELECT SWITCH RETURN
