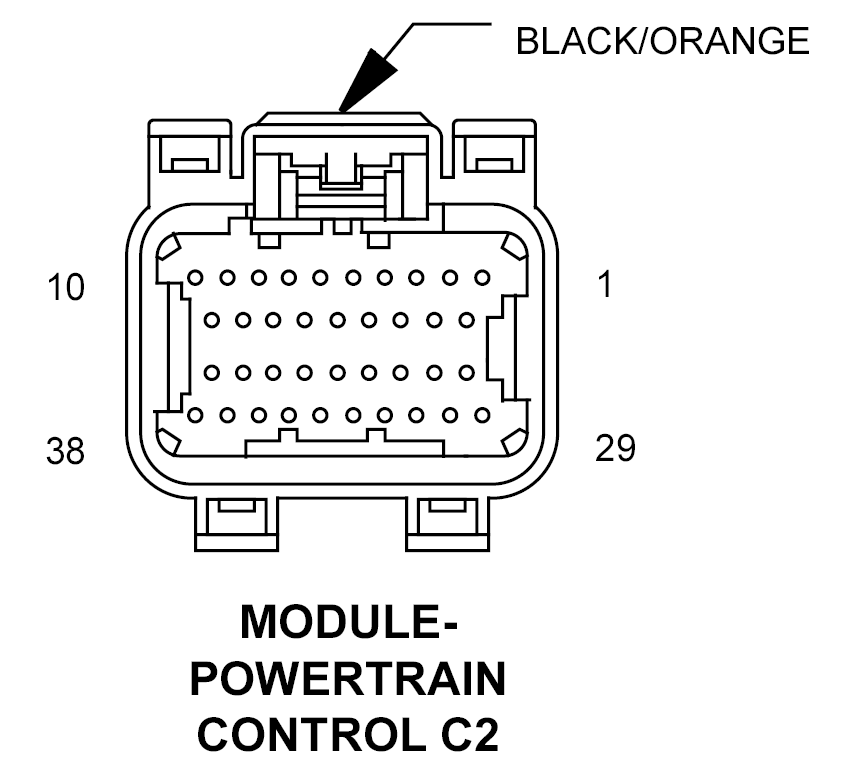

Powertrain Control Module Connector End View (C2)

MODULE-POWERTRAIN CONTROL C2 - BLACK/ORANGE 38-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K10 16DB/OR	COIL CONTROL NO. 6
2	K16 16DB/YL	COIL CONTROL NO. 5
3	K15 16DB	COIL CONTROL NO. 4
4	K58 16BR/VT	INJECTOR CONTROL NO. 6
5	K38 16BR/OR	INJECTOR CONTROL NO. 5
6	K124 18DB/GY	ETC MOTOR (+) (3.7L/5.7L)
7	K93 16DB	COIL CONTROL NO. 3
8	K35 20DB/VT	EGR SOL CONTROL
9	K85 16DB/YL	COIL CONTROL NO. 2
10	K86 16YL/DB	COIL CONTROL NO. 1
11	K14 16BR/TN	INJECTOR CONTROL NO. 4
12	K13 16BR/LB	INJECTOR CONTROL NO. 3
13	K12 16BR/DB	INJECTOR CONTROL NO. 2
14	K11 16BR/YL	INJECTOR CONTROL NO. 1
15	K922 18BR/DB	TP SENSOR RETURN (3.7L/5.7L)
16	K453 18BR/DG	MDS SOL CONTROL NO. 6 (5.7L)
17	K199 20BR/VT	O2 2/1 HEATER CONTROL
18	K99 20BR/TN	O2 1/1 HEATER CONTROL
19	K125 16BR/DG	GEN FIELD CONTROL
20	K2 20VT/OR	ECT SIGNAL
21	K22 18BR/OR	TP NO. 1 SIGNAL
22	K34 20DB/LG	EGR SIGNAL
23	K1 20VT/BR	MAP SIGNAL
24	K942 20BR/LG	KNOCK SENSOR NO. 1 RETURN
25	K42 20DB/OR	KNOCK SENSOR NO. 1 SIGNAL
26	-	-
27	K900 20DB/DG	SENSOR GROUND
28	K122 18BR/DG	TP NO. 2 SIGNAL (3.7L/5.7L)
28	K961 20BR/GY	IAC SIGNAL (4.7L)
29	F855 20PK/YL	5 VOLT SUPPLY
30	K21 20BR/WT	IAT SIGNAL
31	K41 20DB/LB	O2 1/1 SIGNAL
32	K904 20DB/WT	O2 RETURN (DOWNSTREAM)
34	K44 20GY/DB	CMP SIGNAL
35	K24 20BR	CKP SIGNAL
36	K242 20OR/WT	KNOCK SENSOR NO. 2 SIGNAL (3.7L/5.7L)
36	K242 20BR/WT	KNOCK SENSOR NO. 2 SIGNAL (4.7L)
37	K924 20WT/BR	KNOCK SENSOR NO. 2 RETURN
38	K126 18DB/LG	ETC MOTOR (-) (3.7L/5.7L)
38	K61 18VT/GY	IAC CONTROL (4.7L)
