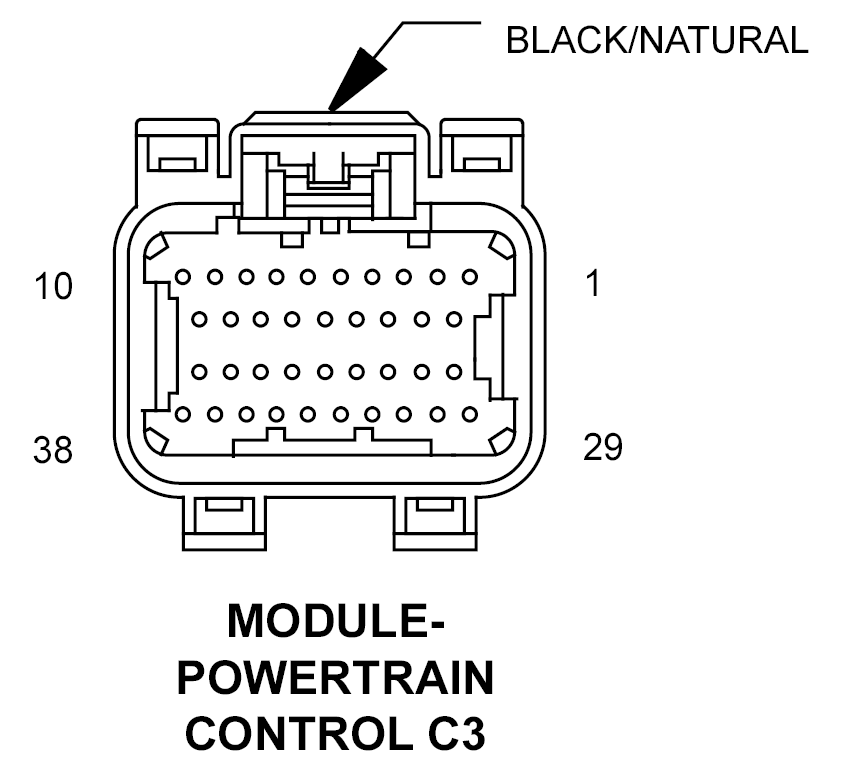

Powertrain Control Module Connector End View (C3)

MODULE-POWERTRAIN CONTROL C3 - BLACK/NATURAL 38-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	K342 20BR/WT	ASD RELAY CONTROL
4	-	-
5	V35 20VT/OR	S/C VENT SOL CONTROL (4.7L)
5	K454 20BR/OR	MDS SOL CONTROL NO. 7 (5.7L)
6	K451 20BR/WT	MDS SOL CONTROL NO. 1 (5.7L)
7	V32 20VT/YL	S/C SUPPLY (4.7L)
8	-	-
9	K299 20BR/OR	O2 1/2 HEATER CONTROL
10	K399 20BR/GY	O2 2/2 HEATER CONTROL
11	C13 20LB/OR	A/C CLUTCH RELAY CONTROL
12	V36 20VT/YL	S/C VACUUM SOL CONTROL (4.7L)
13	-	-
14	B16 20LB/DG	BRAKE SWITCH NO. 2 SIGNAL (3.7L/5.7L)
15	V937 20VT/BR	S/C SWITCH RETURN
16	K167 20BR/YL	APPS NO. 1 SENSOR GROUND (3.7L/5.7L)
17	K400 20BR/VT	APPS NO. 2 SENSOR GROUND (3.7L/5.7L)
18	V72 20OR/VT	S/C SWITCH SENSE 2 (3.7L/5.7L)
19	F42 16DG/LG	FUSED ASD RELAY OUTPUT
20	K52 20DB/YL	EVAP PURGE SOL SIGNAL
21	-	-
22	-	-
23	B15 20DG/WT	BRAKE SWITCH NO. 1 SIGNAL
24	-	-
25	K23 20BR/WT	APPS NO. 1 SIGNAL (3.7L/5.7L)
26	-	-
27	T5 20DG/YL	AUTOSTICK UP/DOWN (ERS) SIGNAL (4.7L/5.7L)
28	F42 16DG/LG	FUSED ASD RELAY OUTPUT
29	K70 20DB/BR	EVAP PURGE SOL CONTROL
30	-	-
31	-	-
32	-	-
33	G224 20VT/YL	ENGINE OIL TEMPERATURE SIGNAL (5.7L)
34	V71 20VT/OR	S/C SWITCH SENSE 1
35	K107 20VT/WT	ESM SIGNAL
36	K29 20WT/BR	APPS NO. 2 SIGNAL (3.7L/5.7L)
37	K31 20BR	FUEL PUMP RELAY CONTROL
38	T752 20DG/OR	ENGINE STARTER MOTOR RELAY CONTROL
