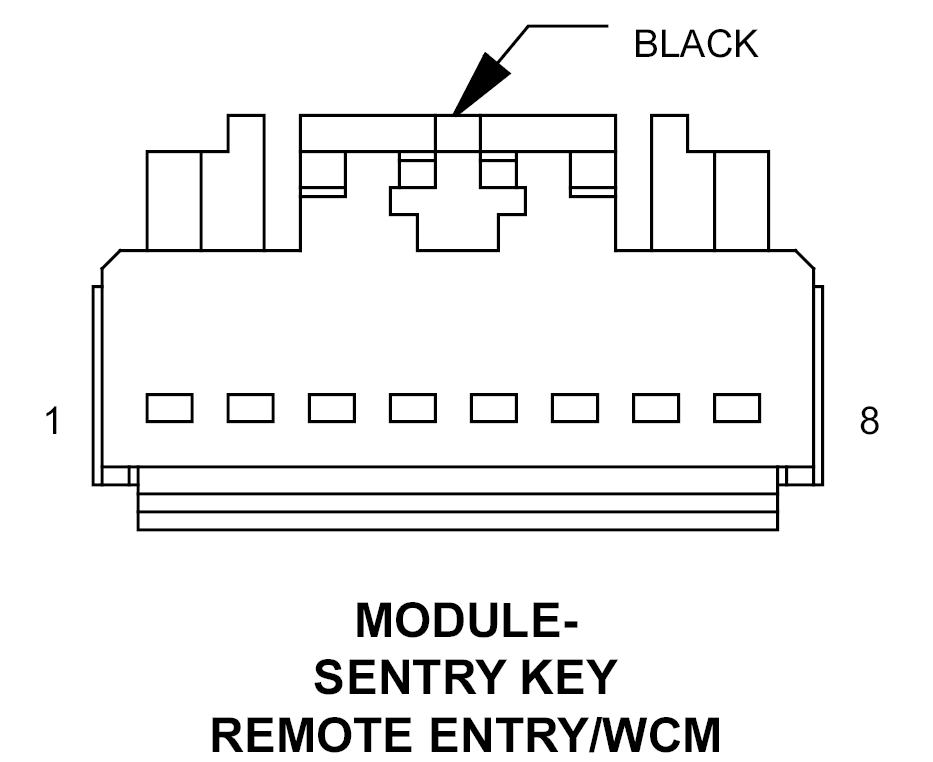

Sentry Key Remote Entry Module (Wireless Control Module) Connector End View

MODULE-SENTRY KEY REMOTE ENTRY/WCM - BLACK 8-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	D508 20WT/GY	COM-LIN TIRE PRESSURE MONITOR LAN
3	F941 20PK/LG	FUSED IGNITION SWITCH OUTPUT (RUN-START)
4	Z18 20BK/LB	GROUND
5	A114 18GY/RD	FUSED B(+)
6	D55 20WT/OR	CAN B BUS (+)
7	D54 20WT	CAN B BUS (-)
8	-	-
