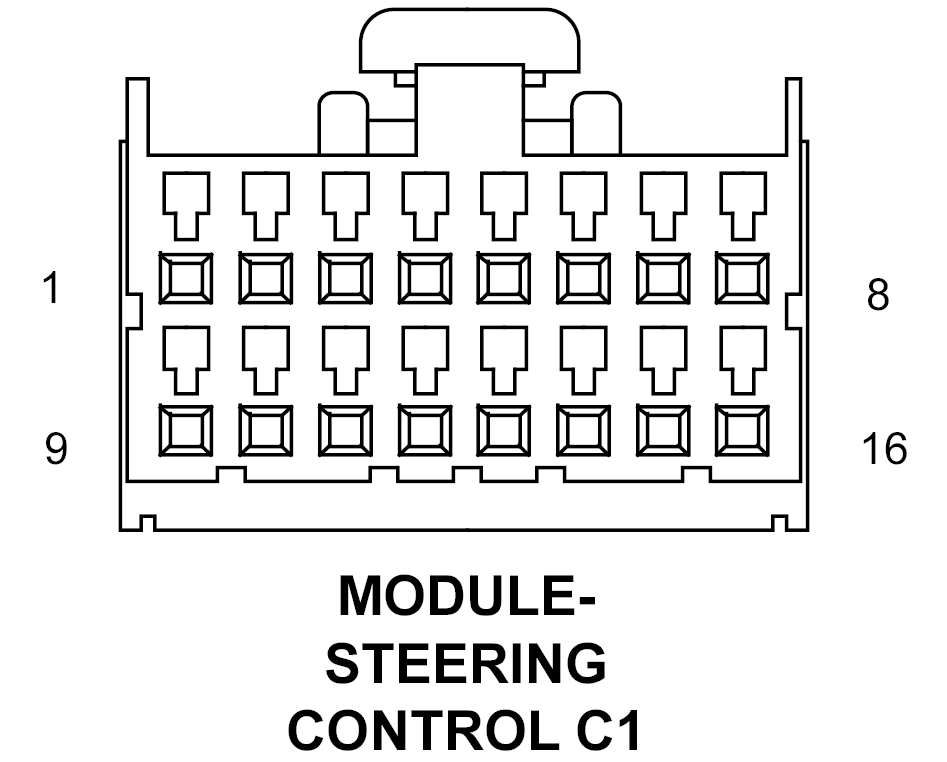

Steering Control Module Connector End View (C1)
MODULE-STEERING CONTROL C1 - 16-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | D65 20WT/LG | CAN C BUS (+) |
| 3 | D64 20WT/LB | CAN C BUS (-) |
| 4 | - | - |
| 5 | Z907 20BK | GROUND |
| 6 | D55 20WT/OR | CAN B BUS (+) |
| 7 | D54 20WT | CAN B BUS (-) |
| 8 | A108 20LG/RD | FUSED B(+) |
| 9 | V937 20VT/BR | S/C SWITCH RETURN |
| 10 | V71 20VT/OR | S/C SWITCH SENSE 1 |
| 11 | V72 20OR/VT | S/C SWITCH SENSE 2 |
| 12 | W13 20BR/LG | REAR WIPER MOTOR CONTROL |
| 13 | W14 20BR/LB | REAR WIPER MOTOR DELAY SIGNAL |
| 14 | G20 20VT/BR | IGNITION SWITCH SENSE |
| 15 | G900 20VT/OR | IGNITION SWITCH SENSE RETURN |
| 16 | L91 20WT/DB | HAZARD SWITCH SENSE |
