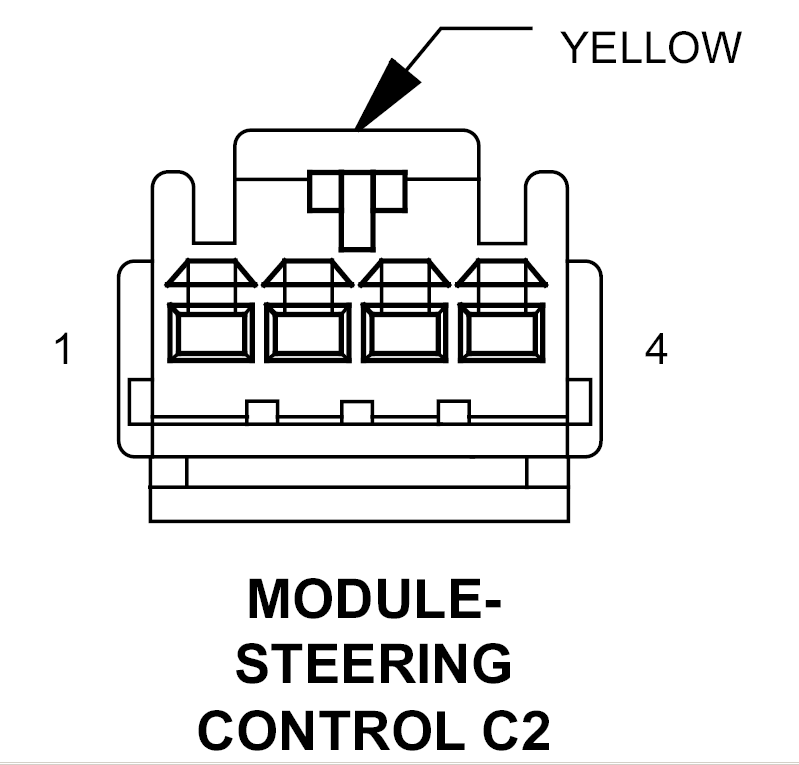

Steering Control Module Connector End View (C2)
MODULE-STEERING CONTROL C2 - YELLOW 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R61 20LG/VT |
DRIVER SQUIB 2 LINE 2 |
| 2 |
R63 20LG/WT |
DRIVER SQUIB 2 LINE 1 |
| 3 |
R43 20LG/BR |
DRIVER SQUIB 1 LINE 2 |
| 4 |
R45 20LG/OR |
DRIVER SQUIB 1 LINE 1 |
