Installation

2.0/2.4L





The sensor is in the clean air duct.

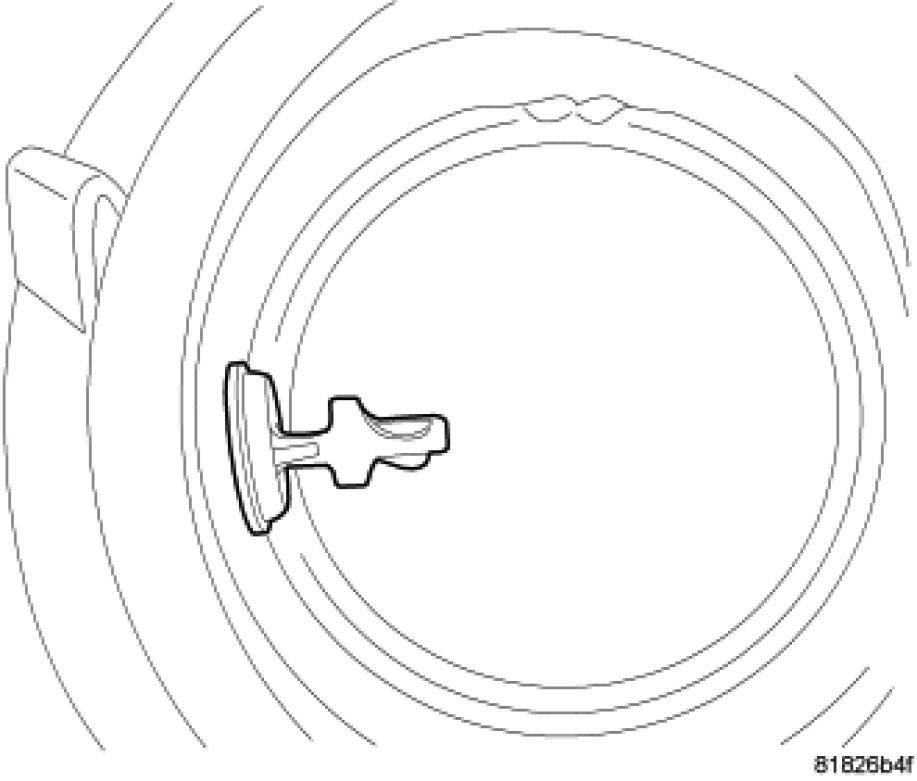

1. Install sensor. Make sure of sensor orientation.

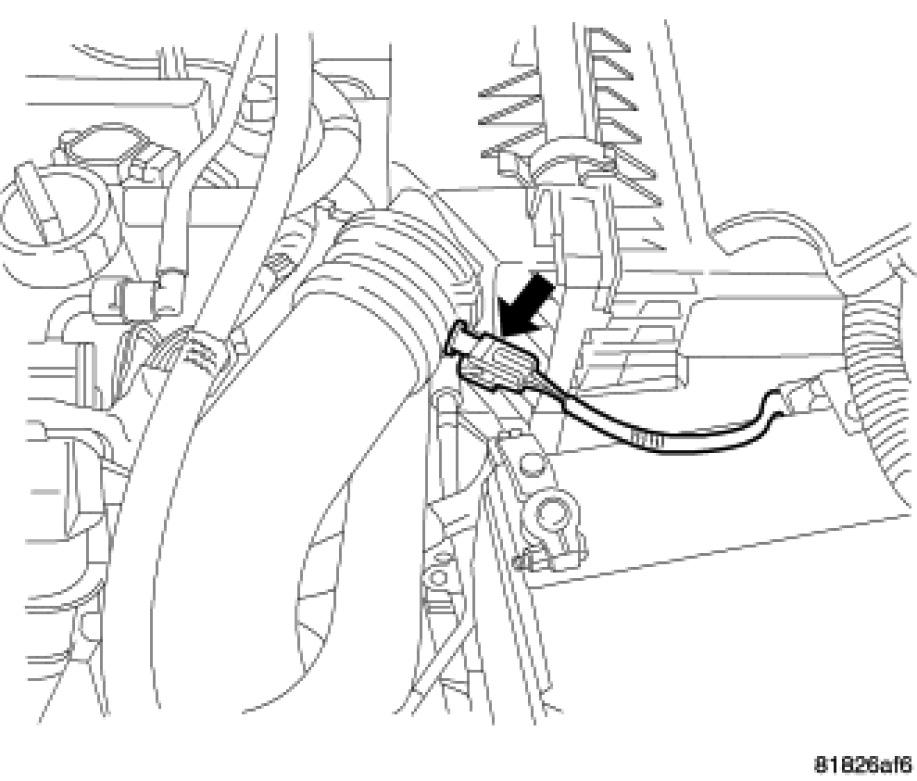

2. Attach electrical connector to sensor.

3. Connect the negative battery cable.
