Coolant Recovery Container-Installation-Diesel

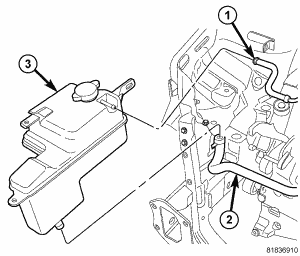

Fig 1: COOLANT RECOVER CONTAINER - DIESEL

Courtesy of CHRYSLER LLC

1 - RETURN HOSE

2 - HOSE

3 - COOLANT CONTAINER

Lower container (3) into engine compartment and connect coolant hose (2) at bottom of container (3).
Position container and install mounting bolt. Tighten to 3 N.m (40 lbs. in.).
Connect coolant bypass hose (1) to coolant recovery pressure container (3).
Refill cooling system. See STANDARD PROCEDURE .
